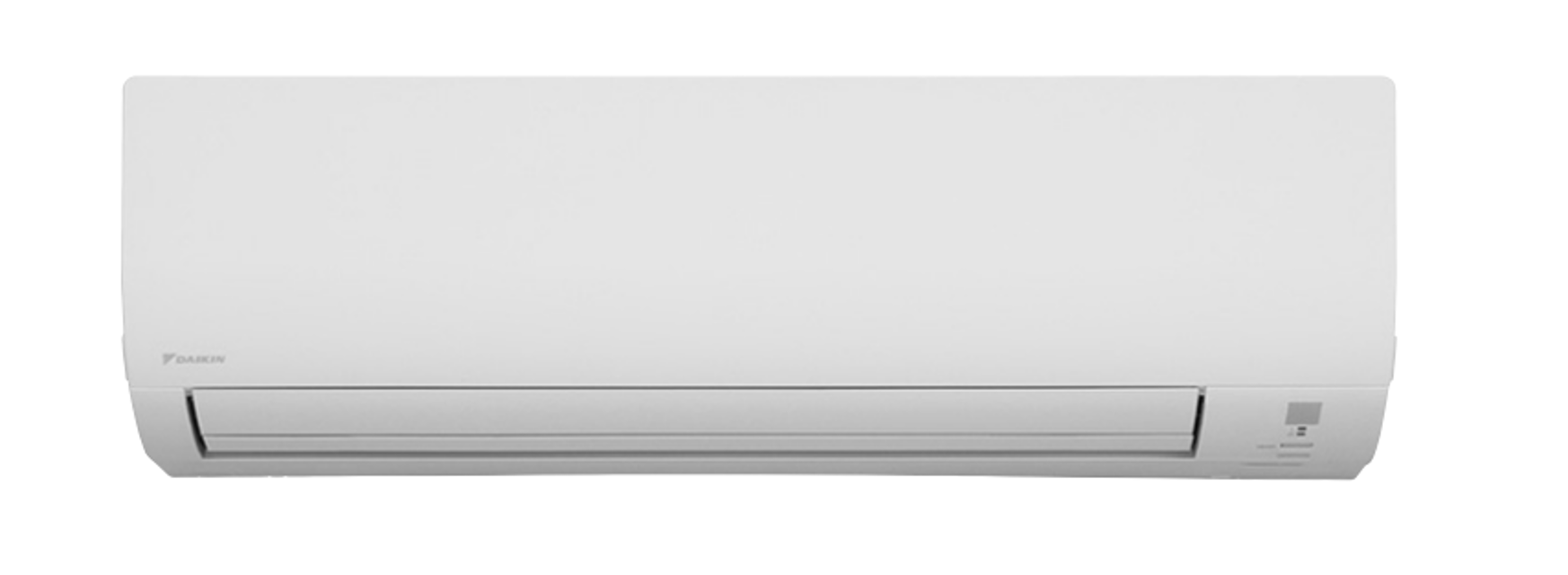

Daikin Indoor Unit Wall Mounted Type FTX15NMVJUA

Need answers fast?
Explore the manual using AI.

Daikin Indoor Unit Wall Mounted Type FTX15NMVJUA
Daikin Indoor Unit Wall Mounted Type FTX15NMVJUA

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Daikin Indoor Unit Wall Mounted Type FTX15NMVJUA

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Indoor Unit Wall Mounted Type FTX15NMVJUA

Daikin Indoor Unit Wall Mounted Type FTX15NMVJUA

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Wall Mounted Type Model FTX15NMVJUA

Integrate maintenance plans directly into your work orders in MaintainX.

Power Supply Waveform Check

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Measure the power supply waveform between No. 1 and No. 2 on the terminal strip

Check mark

Is the power supply waveform a sine wave (Fig.1)?

Check mark

Is there waveform disturbance near the zero-cross (sections circled in Fig.2)?

Check mark

Upload a photo of the measured waveform

Check mark

Sign off on the power supply waveform check

Run this procedureArrow right

Power Module Check

Check mark

Warning: Ensure the voltage between (+) and (–) of the power module is about 0 V before proceeding

Check mark

Voltage between (+) and (–) of the power module is about 0 V

Check mark

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Check mark

Compressor harness connector disconnected

Check mark

Measure resistance between the terminals of the power module and the terminals of the compressor with a multimeter.

Check mark

Enter the resistance measurement

Check mark

Evaluate the measurement results

Check mark

Sign off on the power module check

Run this procedureArrow right

Rotation Pulse Check

Check mark

Set operation off and power off. Disconnect the connector S70 or S71.

Check mark

Voltage between the pins 4 - 7

Check mark

Control voltage between the pins 4 - 3

Check mark

Rotation command voltage between the pins 4 - 2

Check mark

Keep operation off and power off. Connect the connector S70 or S71.

Check mark

4 rotation pulses (0 ~ 15 VDC) at the pins 4 - 1 when the fan motor is rotated 1 turn by hand

Check mark

Fuse melted?

Check mark

Outdoor fan motor functioning properly?

Check mark

Defective PCB?

Run this procedureArrow right

Thermistor Resistance Check

Check mark

Warning: Disconnect the thermistor from the PCB before measuring

Check mark

Enter the resistance value of the thermistor

Check mark

Does the measured resistance match the listed value?

Check mark

Thermistor needs replacement?

Check mark

Upload a photo of the replaced thermistor

Check mark

Sign off on the thermistor resistance check

Run this procedureArrow right

Main Circuit Short Check

Check mark

Warning: Ensure the voltage between (+) and (–) of the diode bridge (DB1) is about 0 V before proceeding

Check mark

Enter the voltage between (+) and (–) of the diode bridge (DB1)

Check mark

Is the voltage approximately 0V?

Check mark

If voltage is not approximately 0V, stop the procedure and report the issue

Check mark

Enter the resistance between the pins of the DB1

Check mark

Compare the resistance with the table

Check mark

Does the resistance indicate a short circuit?

Check mark

Sign off on the main circuit short check

Run this procedureArrow right
