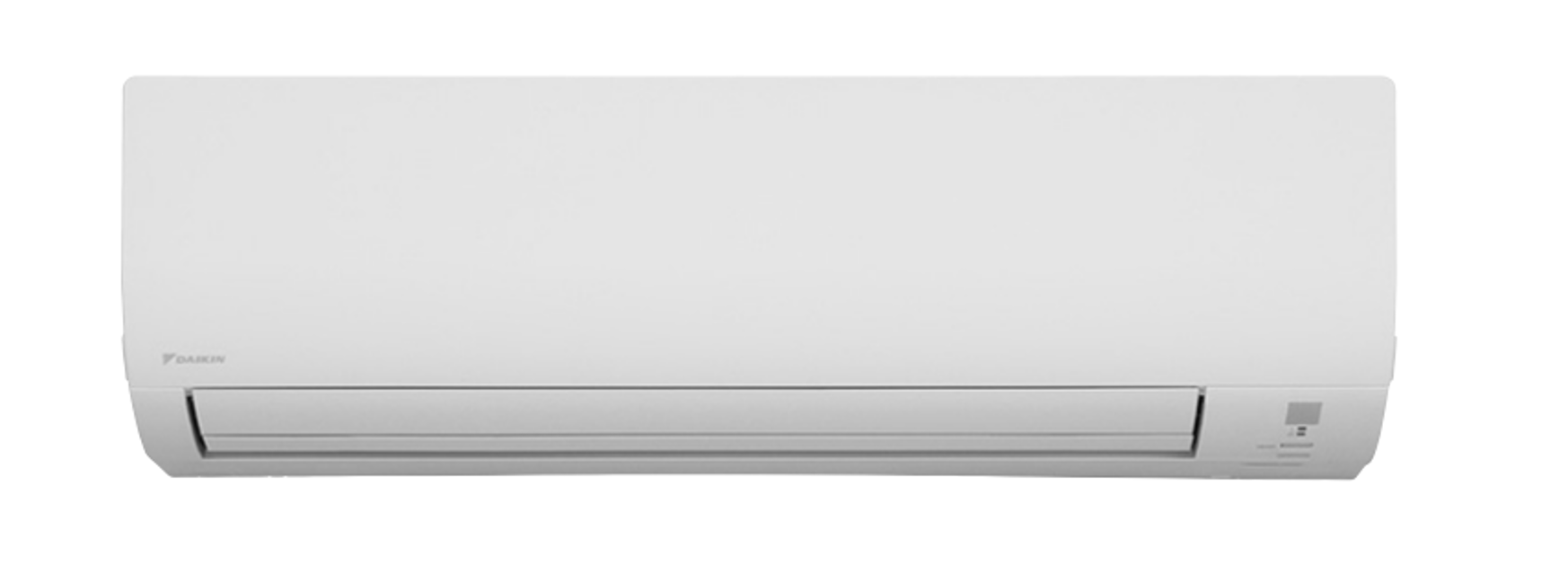

Daikin Indoor Unit Wall Mounted Type FTX15NMVJU

Need answers fast?
Explore the manual using AI.

Daikin Indoor Unit Wall Mounted Type FTX15NMVJU
Daikin Indoor Unit Wall Mounted Type FTX15NMVJU

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Indoor Unit Wall Mounted Type FTX15NMVJU

Daikin Indoor Unit Wall Mounted Type FTX15NMVJU

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Unit Wall Mounted Type Model FTX15NMVJU

Integrate maintenance plans directly into your work orders in MaintainX.

Electronic Expansion Valve Check

Check mark

EV connector correctly connected to the PCB

Check mark

EV generates a latching sound when power is turned off and on again

Check mark

Continuity confirmed when connector is disconnected and checked with a multimeter

Check mark

Check the continuity between the pins

Check mark

EV coil is not faulty if there is continuity between the pins

Check mark

Outdoor unit PCB (main PCB) is faulty if continuity is confirmed

Check mark

Sign off on the electronic expansion valve check

Run this procedureArrow right

Power Module Check

Check mark

Warning: Ensure the voltage between (+) and (–) of the power module is about 0 V before proceeding

Check mark

Voltage check successful?

Check mark

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Check mark

Connector disengaged successfully?

Check mark

Measure resistance between the terminals of the power module and the terminals of the compressor with a multimeter.

Check mark

Enter the resistance measurement

Check mark

Evaluate the measurement results

Check mark

Sign off on the power module check

Run this procedureArrow right

Main Circuit Short Check

Check mark

Warning: Ensure the voltage between (+) and (-) of the diode bridge (DB1) is about 0 V before proceeding

Check mark

Enter the voltage between (+) and (-) of the diode bridge (DB1)

Check mark

Measure the resistance between the pins of the DB1

Check mark

Enter the resistance between the pins of the DB1

Check mark

Is the resistance infinity or less than 1 k(omega)?

Check mark

If the resistance is infinity or less than 1 k(omega), a short circuit occurs on the main circuit.

Check mark

Sign off on the main circuit short check

Run this procedureArrow right

Thermistor Resistance Check

Check mark

Warning: Disconnect the connector of thermistor ASSY from the PCB before proceeding

Check mark

Enter the resistance value of the thermistor

Check mark

Select the expected resistance value

Check mark

Does the measured resistance match the expected value?

Check mark

If the measured resistance does not match the expected value, replace the thermistor

Check mark

Sign off on the thermistor resistance check

Run this procedureArrow right

Rotation Pulse Check

Check mark

Set operation off and power off. Disconnect the connector S70 or S71.

Check mark

Voltage between the pins 4 - 7

Check mark

Control voltage between the pins 4 - 3

Check mark

Rotation command voltage between the pins 4 - 2

Check mark

Keep operation off and power off. Connect the connector S70 or S71.

Check mark

4 rotation pulses (0 ~ 15 VDC) at the pins 4 - 1 when the fan motor is rotated 1 turn by hand.

Check mark

Fuse melted?

Check mark

If fuse is melted, check the outdoor fan motor for proper function.

Check mark

Defective PCB?

Run this procedureArrow right
