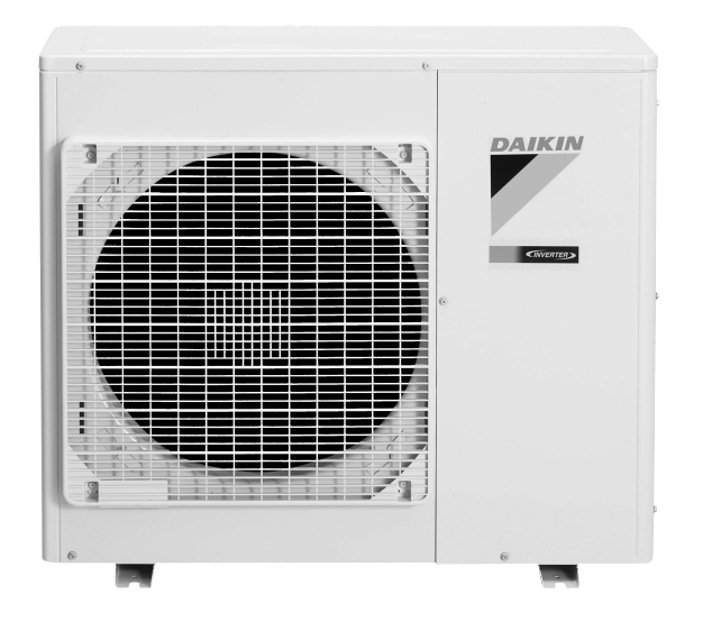

Daikin Outdoor Heat Pump RXS80KAVMA

Remove the screw on the stop valve mounting plate

Remove the screw on the partition plate (1)

Remove the 2 screws to detach the earth wires

Disconnect the connector for the fan motor [S70]

Release the fan motor lead wire from the 5 hooks

When reassembling, do not use these 2 hooks

Disconnect the connectors of the front side

Select the disconnected connectors

The compressor lead wire is fixed on the partition plate (1) with a clamp

1. Remove the electronic expansion valve coil.

1 Pull the electronic expansion valve coil out.

2. Remove the four way valve coil.

2 Remove the four way valve coil.

1 Pull out the outdoor heat exchanger thermistor.

2 Slightly open the sound blanket (outer).

3 Remove the sound blanket (top upper).

Remove the sound blanket (top upper)

The sound blanket is fragile. Carefully pass the discharge pipe through it.

Remove the screw and slightly push the partition plate (1) to the left for easy work.

Remove the sound blanket (outer)

Remove the sound blanket (top lower)

The sound blanket is fragile. Carefully pass the discharge pipe through it.

The sound blanket is fragile. Be careful of the notches of the compressor mount (3 locations).

Warning: Ensure to follow the steps in order to avoid injury

Remove the 2 lower screws first

Remember: Remove the lower screws first to prevent the fan motor from tilting down or falling

Note: When reassembling, ensure that the wire harness is facing downward

Sign off on the fan motor removal

The hooks are secured in the clearances of the outdoor heat exchanger fins.

1 Unfasten the 2 hooks at the bottom first.

2 Slide the suction grille downward to unfasten the 3 top hooks.

1 Remove the 4 screws on the back and the screw on the left side

2 Remove the 2 screws on the front and the screw on the right side panel.
