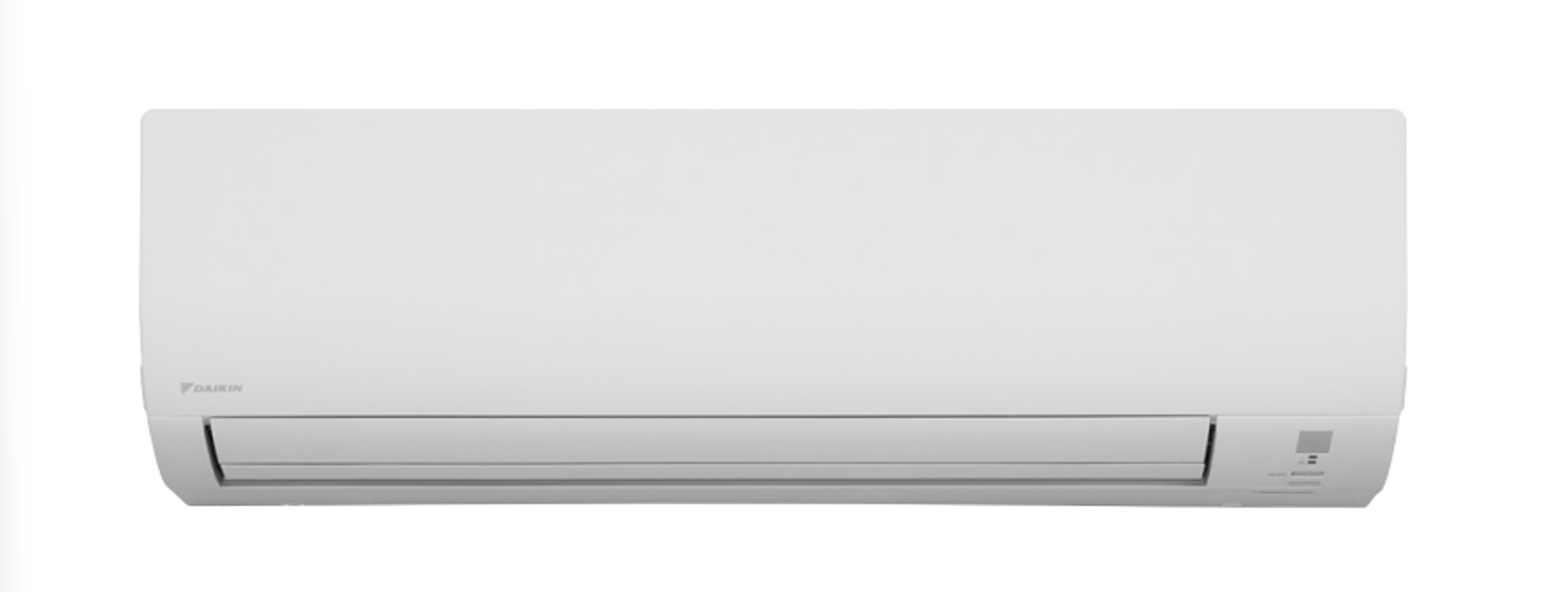

Daikin Indoor Unit Wall Mounted Type Air Conditioner FTX60K2V1B

Warning: This procedure requires trained personnel with PPE!

Install an inverter analyzer instead of a compressor

Charged voltage of the built-in smoothing electrolytic capacitor dropped to 10 VDC or below?

Terminals removed from the compressor?

Terminals connected to the terminals of the inverter analyzer without touching each other?

Activate power transistor test operation from the indoor unit

Center of the TEMP button and the OFF button on the remote controller pressed at the same time?

Set operation off and power off. Disconnect the connector S70 or S71.

Control voltage between the pins 3 - 4

Rotation command voltage between the pins 2 - 4

Keep operation off and power off. Connect the connector S70 or S71.

Rotation pulses at the pins 1 - 4 when the fan motor is rotated 1 turn by hand

Is the outdoor fan motor functioning properly?

Warning: Ensure the voltage between (+) and (–) of the power module is about 0 V before proceeding

Voltage between (+) and (–) of the power module is about 0 V

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Compressor harness connector disconnected from the outdoor unit PCB

Measure resistance between the terminals of the power module and the terminals of the compressor with a multimeter.

Enter the resistance measurement

Evaluate the measurement results

Sign off on the power module check

EV connector correctly connected to the PCB

EV generates a latching sound when power is turned off and on again

Continuity confirmed when connector is disconnected and checked with a multimeter

Check the continuity between the pins

Continuity confirmed between the pins

Outdoor unit PCB (main PCB) is faulty if continuity is confirmed in previous step

Sign off on the electronic expansion valve check

Warning: Ensure the voltage between (+) and (–) of the diode bridge (DB1) is about 0 V before proceeding

Enter the voltage between (+) and (–) of the diode bridge (DB1)

If the voltage is not about 0 V, stop the procedure and report the issue

Enter the resistance between the pins of the DB1

Is the resistance ∞ or less than 1 kΩ?

If the resistance is ∞ or less than 1 kΩ, a short circuit occurs on the main circuit

Sign off on the main circuit short check
