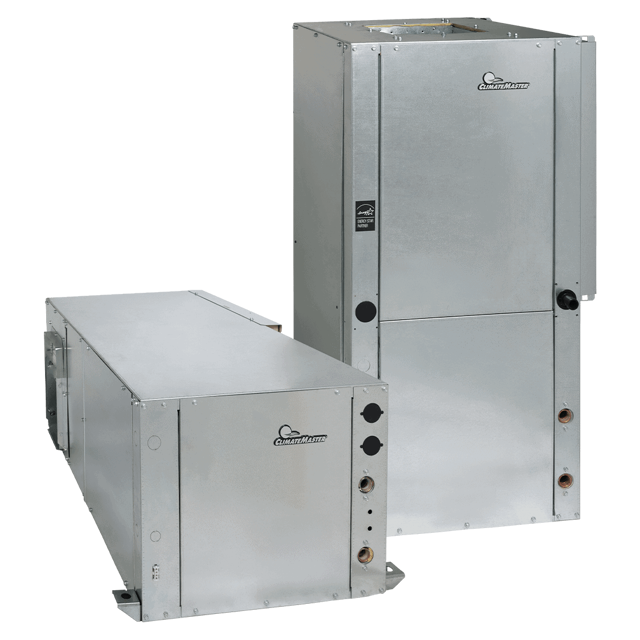

Climate Master Heat Pump GRH015AGC10CLTS

Warning: This inspection requires trained personnel with PPE!

Is the potable water chemically softened?

Desuperheater scaled due to high temperatures?

Select the frequency of inspections

Note: In areas with extremely hard water, a HWG is not recommended.

Sign off on the hot water generator coils inspection

Direct ground water applications only

If the system is installed in an area with a known high mineral content (125 P.P.M. or greater) in the water, it is best to establish a periodic maintenance schedule with the owner so the coil can be checked regularly.

Consult the well water applications section of this manual for a more detailed water coil material selection.

Should periodic coil cleaning be necessary, use standard coil cleaning procedures, which are compatible with the heat exchanger material and copper water lines.

Enter the water flow rate through the unit

Generally, the more water flowing through the unit, the less chance for scaling. Therefore, 1.5 gpm per ton [1.6 l/m per kW] is recommended as a minimum flow. Minimum flow rate for entering water temperatures below 50°F [10°C] is 2.0 gpm per ton [2.2 l/m per kW].

All other water loop applications

Generally water coil maintenance is not needed for closed loop systems. However, if the piping is known to have high dirt or debris content, it is best to establish a periodic maintenance schedule with the owner so the water coil can be checked regularly.

Upon receipt of the equipment, carefully check the shipment against the bill of lading.

Packaging of each unit inspected?

Each unit inspected for damage?

Ensure that the carrier makes proper notation of any shortages or damage on all copies of the freight bill and completes a common carrier inspection report.

Concealed damage not discovered during unloading must be reported to the carrier within 15 days of receipt of shipment. If not filed within 15 days, the freight company can deny the claim without recourse.

NOTE: It is the responsibility of the purchaser to file all necessary claims with the carrier. Notify your equipment supplier of all damage within fifteen (15) days of shipment.

Sign here to confirm the inspection

Warning: Do not allow water to stay in contact with the cabinet for long periods of time to prevent corrosion of the cabinet sheet metal.

Note: Generally, vertical cabinets are set up from the floor a few inches [7 - 8 cm] to prevent water from entering the cabinet.

Is the cabinet set up from the floor a few inches [7 - 8 cm]?

Type of detergent used for cleaning

Was the cabinet cleaned using a mild detergent?

Sign off on the cabinet cleaning

Warning: Only trained personnel should perform this check

If dry operation is suspected, report to the maintenance team immediately

Enter the amp draw from the serial plate data

Enter the actual amp draw from the motor

If the actual amp draw is more than 10% greater than the serial plate data, report to the maintenance team immediately

Sign off on the fan motors dry operation and amperage check
