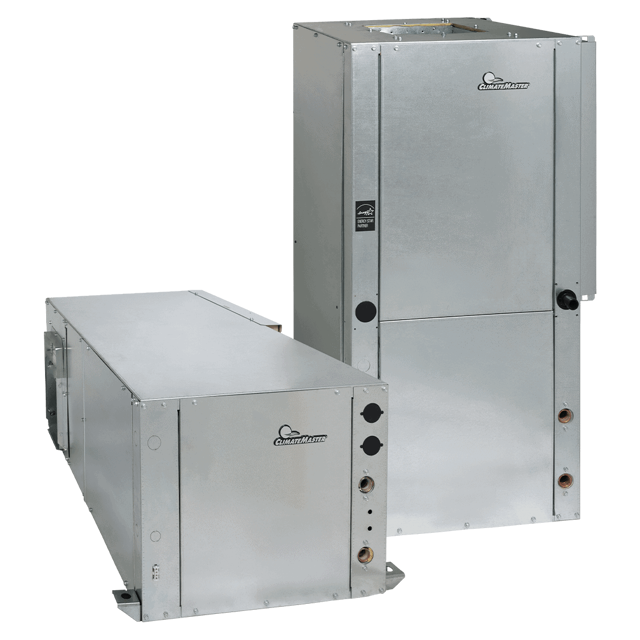

Climate Master Heat Pump GRH042AGC10CLTS

Warning: Carefully check the shipment against the bill of lading.

Packaging of each unit inspected?

Each unit inspected for damage?

Ensure that the carrier makes proper notation of any shortages or damage on all copies of the freight bill and completes a common carrier inspection report.

Report any concealed damage not discovered during unloading to the carrier

NOTE: It is the responsibility of the purchaser to file all necessary claims with the carrier.

Notify your equipment supplier of all damage within fifteen (15) days of shipment.

Sign off on the initial equipment inspection

CAUTION: Fin edges are sharp. Take care not to damage the aluminum fins while cleaning.

Check the air coil for dirt. If dirty, proceed to next step.

Brush or vacuum clean the air coil.

Check the air coil for any damage after cleaning.

Sign off on the air coil cleaning

Warning: Only trained personnel should perform this check

Fan motor dry operation suspected?

If dry operation is suspected, report to the maintenance team immediately

Enter the amp draw from the serial plate data

Enter the actual amp draw from the motor

If the actual amp draw is more than 10% greater than the serial plate data, report to the maintenance team immediately

Sign off on the fan motors dry operation and amperage check

Warning: This inspection requires trained personnel with PPE!

Is the potable water chemically softened?

Desuperheater scaled due to high temperatures?

Select the frequency of inspections

Sign off on the hot water generator coils inspection

Warning: Do not allow water to stay in contact with the cabinet for long periods of time to prevent corrosion of the cabinet sheet metal.

Note: Generally, vertical cabinets are set up from the floor a few inches [7 - 8 cm] to prevent water from entering the cabinet.

Is the cabinet set up from the floor a few inches [7 - 8 cm]?

Is the cabinet dry after cleaning?

Type of detergent used for cleaning

Sign off on the cabinet cleaning
