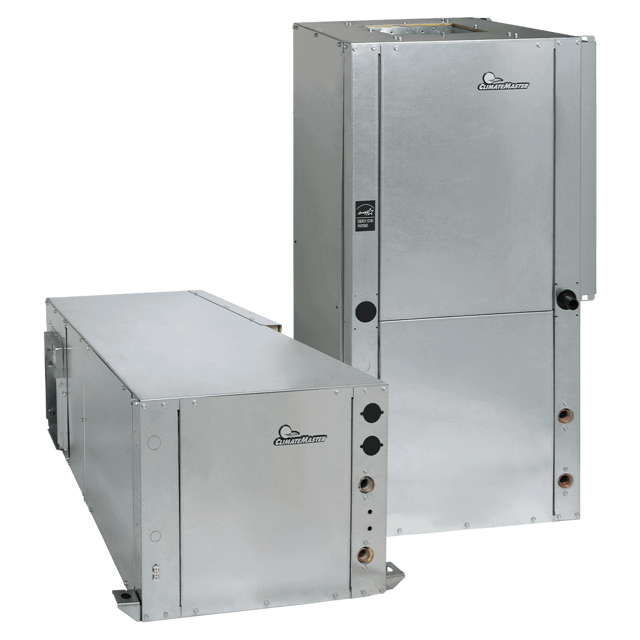

Climate Master Heat Pump GRV015AGC10CLTS

Create an account to install this asset package.

Maintenance Plans for Climate Master Heat Pump Model GRV015AGC10CLTS

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Fan Motors Dry Operation and Amperage Check

Warning: Only trained personnel should perform this check

Dry operation suspected?

If dry operation is suspected, report to the maintenance team

Enter the amp draw from the serial plate data

Enter the actual amp draw from the motor

If the actual amp draw is more than 10% greater than the serial plate data, report to the maintenance team

Sign off on the fan motors dry operation and amperage check

Run this procedure

Hot Water Generator Coils Inspection

Warning: This inspection requires trained personnel with PPE!

Is the potable water hard?

If the water is hard and not chemically softened, the desuperheater may scale quicker and require more frequent inspections.

Is the water coil scaled?

Select the type of water unit

Enter the temperature of the desuperheater

Enter any additional observations

Sign off on the inspection

Run this procedure

Piping System Maintenance

Ensure that electrical power to the unit is disconnected.

Is the supply hose connected directly to the return riser valve using a single length of flexible hose?

Are all air vents open?

Is the system filled with water without overflow?

Is all air bled from the system?

Are all strainers in place?

Is make-up water available?

Set the boiler to raise the loop temperature to approximately 85°F [29°C].

Is the make-up water replacement rate equal to the rate of bleed?

Run this procedure

Cabinet Cleaning

Warning: Do not allow water to stay in contact with the cabinet for long periods of time to prevent corrosion of the cabinet sheet metal.

Generally, vertical cabinets are set up from the floor a few inches [7 - 8 cm] to prevent water from entering the cabinet.

Is the cabinet set up from the floor a few inches [7 - 8 cm]?

Enter the type of detergent used for cleaning

Was the cabinet cleaned using a mild detergent?

Sign off on the cabinet cleaning

Run this procedure

Initial Equipment Inspection

Warning: Carefully check the shipment against the bill of lading.

All units received?

Packaging of each unit inspected?

Each unit inspected for damage?

Ensure that the carrier makes proper notation of any shortages or damage on all copies of the freight bill and completes a common carrier inspection report.

Concealed damage not discovered during unloading must be reported to the carrier within 15 days of receipt of shipment. If not filed within 15 days, the freight company can deny the claim without recourse.

NOTE: It is the responsibility of the purchaser to file all necessary claims with the carrier. Notify your equipment supplier of all damage within fifteen (15) days of shipment.

Sign off on the initial equipment inspection

Run this procedure
