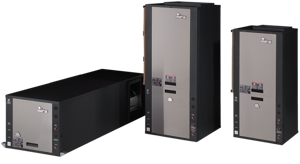

Climate Master Heat Pump GRV030AGC10CLTS

Ensure that electrical power to the unit is disconnected.

Is the supply hose connected directly to the return riser valve using a single length of flexible hose?

Is the system filled with water without overflow?

Is all air bled from the system?

Is the drain at the lowest point in the system open?

Warning: This inspection requires trained personnel with PPE!

Is the potable water chemically softened?

Select the frequency of inspections

Is the area with extremely hard water?

If the area has extremely hard water, a HWG is not recommended.

Sign off on the Hot Water Generator Coils Inspection

Warning: Only trained personnel should perform this check

If dry operation is suspected, report to the maintenance team immediately

Enter the amp draw from the serial plate data

Is amp draw no more than 10% greater than indicated on serial plate data?

Sign off on the fan motors dry operation and amperage check

Warning: Carefully check the shipment against the bill of lading.

Packaging of each unit inspected?

Each unit inspected for damage?

Ensure that the carrier makes proper notation of any shortages or damage on all copies of the freight bill and completes a common carrier inspection report.

Concealed damage not discovered during unloading must be reported to the carrier within 15 days of receipt of shipment.

NOTE: It is the responsibility of the purchaser to file all necessary claims with the carrier.

Damage reported to the carrier within 15 days?

Damage reported to the equipment supplier within 15 days?

CAUTION: Fin edges are sharp. Handle with care.

Check the air coil for dirt. If dirty, proceed to next step.

Brush or vacuum clean the air coil. Be careful not to damage the aluminum fins.

Sign off on the air coil cleaning
