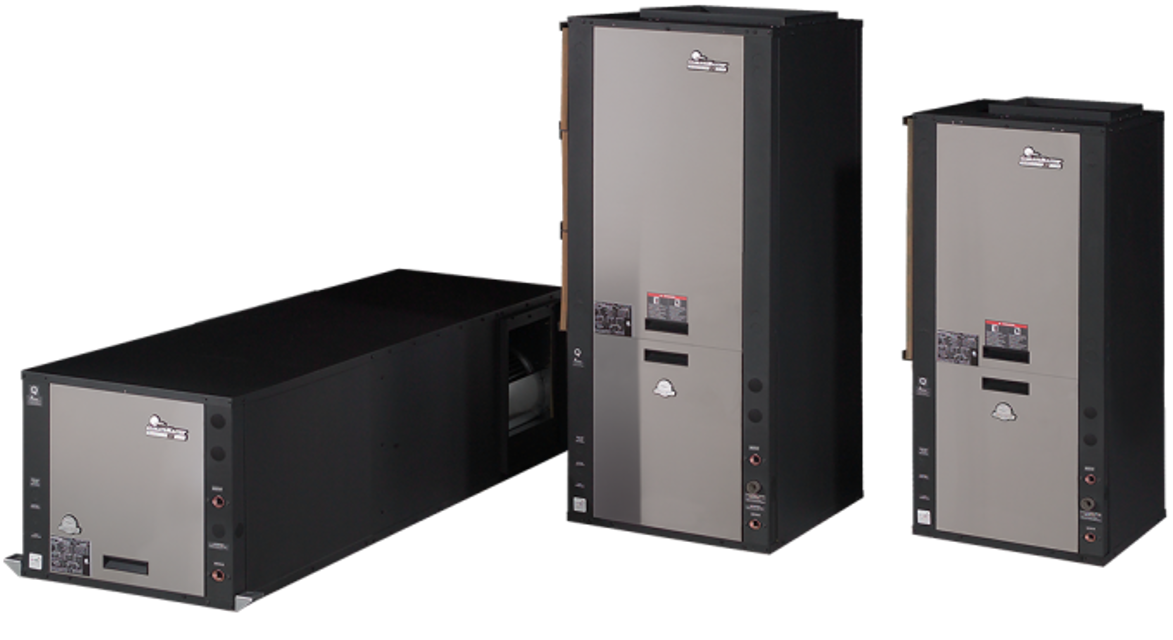

Climate Master Heat Pump TSH036CGC30CLTS

Direct ground water applications only

If the system is installed in an area with a known high mineral content (125 P.P.M. or greater) in the water, it is best to establish a periodic maintenance schedule with the owner so the coil can be checked regularly.

Enter the water flow rate. Minimum flow rate for entering water temperatures below 50°F [10°C] is 2.0 gpm per ton [2.2 l/m per kW].

All other water loop applications

Generally water coil maintenance is not needed for closed loop systems. However, if the piping is known to have high dirt or debris content, it is best to establish a periodic maintenance schedule with the owner so the water coil can be checked regularly.

Upon receipt of the equipment, carefully check the shipment against the bill of lading.

Packaging of each unit inspected?

Each unit inspected for damage?

Ensure that the carrier makes proper notation of any shortages or damage on all copies of the freight bill and completes a common carrier inspection report.

Concealed damage not discovered during unloading must be reported to the carrier within 15 days of receipt of shipment. If not filed within 15 days, the freight company can deny the claim without recourse.

NOTE: It is the responsibility of the purchaser to file all necessary claims with the carrier. Notify your equipment supplier of all damage within fifteen (15) days of shipment.

Sign here to confirm the inspection

CAUTION! Ensure that electrical power to the unit is disconnected.

Is the supply hose connected directly to the return riser valve?

Is the system filled with water without overflow?

Is all air bled from the system?

Is the system pressurized and checked for leaks?

Set the boiler to raise the loop temperature to approximately 85°F [29°C]
