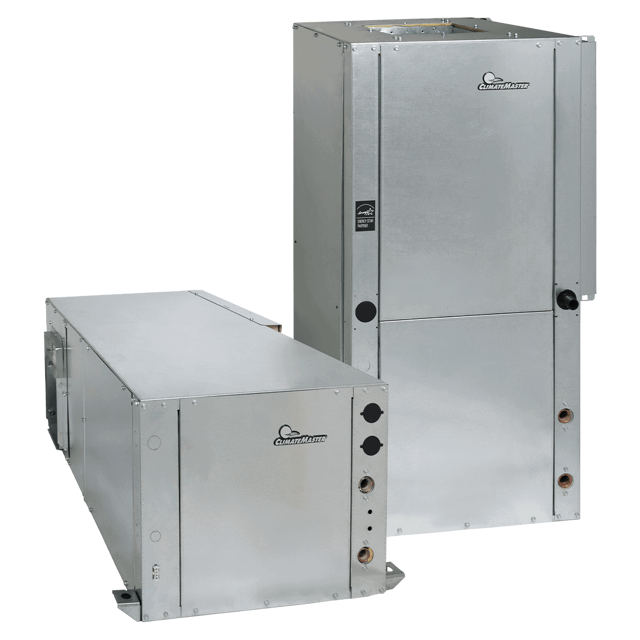

Climate Master Heat Pump GRH036AGC10CLTS

CAUTION: Fin edges are sharp. Care must be taken not to damage the aluminum fins while cleaning.

Check the air coil for dirt. If dirty, proceed to next step.

Brush or vacuum clean the air coil.

Check the aluminum fins for damage.

Sign off on the air coil cleaning

Warning: This inspection requires trained personnel with PPE!

Is the potable water chemically softened?

Select the frequency of inspections

Is the area with extremely hard water?

If the area has extremely hard water, a HWG is not recommended.

Sign off on the Hot Water Generator Coils Inspection

Warning: Only trained personnel should perform this check

Fan motor dry operation suspected?

Enter the amp draw from the serial plate data

Enter the actual amp draw from the motor

Is the actual amp draw no more than 10% greater than indicated on serial plate data?

Sign off on the fan motors dry operation and amperage check

Ensure that electrical power to the unit is disconnected.

Is the supply hose connected directly to the return riser valve using a single length of flexible hose?

Is the system filled with water without overflow?

Is all air bled from the system?

Is the drain at the lowest point in the system open?

Direct ground water applications only

If the system is installed in an area with a known high mineral content (125 P.P.M. or greater) in the water, it is best to establish a periodic maintenance schedule with the owner so the coil can be checked regularly.

Enter the water flow rate through the unit

Minimum flow rate for entering water temperatures below 50°F [10°C] is 2.0 gpm per ton [2.2 l/m per kW].

All other water loop applications

Generally water coil maintenance is not needed for closed loop systems. However, if the piping is known to have high dirt or debris content, it is best to establish a periodic maintenance schedule with the owner so the water coil can be checked regularly.
