Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

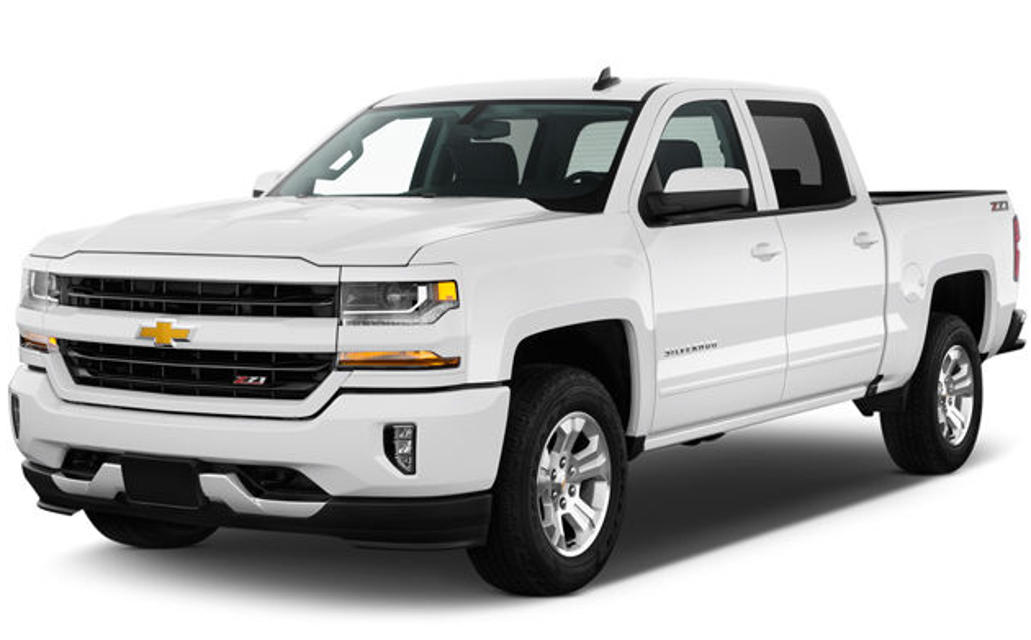

Chevrolet Vehicle 2016 Silverado 1500

Create an account to install this asset package.

Maintenance Plans for Chevrolet Vehicle Model 2016 Silverado 1500

Integrate maintenance plans directly into your work orders in MaintainX.

Wiper Blade Replacement

Warning: Allowing the wiper arm to touch the windshield when no wiper blade is installed could damage the windshield. Any damage that occurs would not be covered by the vehicle warranty. Do not allow the wiper arm to touch the windshield.

Inspect windshield wiper blades for wear or cracking

Choose the type of replacement blade

Pull the windshield wiper assembly away from the windshield

Press the button (2) in the middle of the wiper arm connector, and pull the wiper blade away from the arm connector (1)

Remove the wiper blade

Reverse Steps 1–3 for wiper blade replacement

Sign off on the wiper blade replacement

Run this procedure

Brake Fluid Check

Engine Compartment Overview -> 364

Is the fluid level above MIN?

If fluid level is not above MIN, have the brake hydraulic system checked for leaks

After work on brake hydraulic system, is the level above MIN but not over the MAX mark?

Run this procedure

Cold Check

Warning: This procedure is to be used only when the transmission temperature is between 27 °C and 32 °C (80 °F and 90 °F).

Is the transmission temperature between 27 °C and 32 °C (80 °F and 90 °F)?

Locate the transmission dipstick at the rear of the engine compartment, on the passenger side of the vehicle.

Was the transmission dipstick located?

Flip the handle up, then pull out the dipstick and wipe it with a clean rag or paper towel.

Was the dipstick pulled out and wiped clean?

Install the dipstick by pushing it back in all the way; wait three seconds, and then pull it back out again.

Was the dipstick installed correctly and pulled out again?

Check both sides of the dipstick and read the lower level. Repeat the check procedure to verify the reading.

Run this procedure

Wheel Alignment Maintenance

Warning: This maintenance check requires trained personnel with PPE!

Is the vehicle pulling to one side?

Is there unusual tire wear?

Is there improper vehicle handling?

If any of the above is 'YES', report the issues to the maintenance team and stop the procedure

Did the vehicle pass the post-alignment test?

Issues found during the test

Sign off on the wheel alignment maintenance

Run this procedure

Vehicle Maintenance

Tire Rotation and Required Services Every 12 000 km/7,500 mi

Rotate the tires, if recommended for the vehicle, and perform the following services. See Tire Rotation -> 422.

Check engine oil level and oil life percentage. If needed, change engine oil and filter, and reset oil life system. See Engine Oil -> 369 and Engine Oil Life System -> 372.

Check engine coolant level. See Engine Coolant -> 379.

Check windshield washer fluid level. See Washer Fluid -> 385.

Visually inspect windshield wiper blades for wear, cracking, or contamination. See Exterior Care -> 452. Replace worn or damaged wiper blades. See Wiper Blade Replacement -> 394.

Check tire inflation pressures.See Tire Pressure -> 416.

Inspect tire wear. See Tire Inspection -> 422.

Visually check for fluid leaks.

Run this procedure
