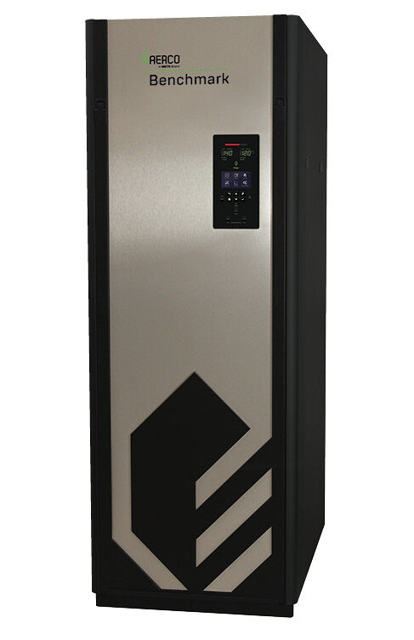

AERCO International Boiler Benchmark 2000

Need answers fast?
Explore the manual using AI.

AERCO International Boiler Benchmark 2000
AERCO International Boiler Benchmark 2000

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

AERCO International Boiler Benchmark 2000

AERCO International Boiler Benchmark 2000

Create an account to install this asset package.

Maintenance Plans for AERCO International Boiler Model Benchmark 2000

Integrate maintenance plans directly into your work orders in MaintainX.

Ignition Switch Open During Ignition

Check mark

Set the unit’s ON/OFF switch to the OFF position

Check mark

Place the unit in Manual Mode and set the valve position between 25% and 30%

Check mark

Remove the Air/Fuel Valve cover by rotating the cover counterclockwise to unlock and lift up to remove

Check mark

Remove one of the two wires (#169 or #170) from the Ignition Switch

Check mark

Initiate a unit start sequence

Check mark

The unit should begin its start sequence and then shut down and display IGN SWITCH OPEN DURING IGNITION

Check mark

Replace the wire on the Ignition Switch and press the CLEAR button. The unit should restart

Check mark

Sign off on the ignition switch check

Run this procedureArrow right

6 Monthly Igniter-Injector Maintenance

Check mark

Warning: The igniter-injector may be hot, therefore, care should be exercised to avoid burns.

Check mark

Is the unit cooled to room temperature?

Check mark

Is the ON/OFF switch on the control panel in the OFF position?

Check mark

Is AC power disconnected from the unit?

Check mark

Is the top shroud removed from the unit?

Check mark

Is the cable disconnected from the igniter-injector?

Check mark

Is the gas injector tube of the igniter-injector disconnected from the elbow of the staged ignition assembly?

Check mark

Is the igniter-injector removed from the burner plate?

Check mark

Is there evidence of erosion or carbon build-up on the igniter-injector?

Run this procedureArrow right

Flame Fault Test

Check mark

Warning: This procedure should be performed by trained personnel only.

Check mark

Set the ON/OFF switch to the OFF position.

Check mark

Place the unit in the Manual Mode and set the valve position between 25% and 30%.

Check mark

Close the manual gas shutoff valve located between the Safety Shut-Off Valve (SSOV) and the Air/Fuel Valve.

Check mark

Set the ON/OFF switch to the ON position to start the unit.

Check mark

The unit should purge and light the Pilot Flame, then it should shut down after reaching the main burner ignition cycle and display FLAME LOSS DURING IGN.

Check mark

Open the valve previously closed in step 3 and press the CLEAR button.

Check mark

Restart the unit and allow it to prove flame.

Check mark

Once flame is proven, close the manual gas valve located between the SSOV and the Air/Fuel Valve.

Run this procedureArrow right

1 Monthly Boiler Test

Check mark

WARNING: Periodic testing of all boiler controls and safety devices is required to determine that they are operating as designed. Precautions shall be taken while tests are being performed to protect against bodily injury and property damage. The owner or user of an automatic boiler system should set up a formal system of periodic preventive maintenance and testing. Tests should be conducted on a regular basis and the results recorded in a log-book.

Check mark

Flue, vent, stack or intake air duct: Visually inspection condition and check for obstructions

Check mark

Low air flow: See section 6.8

Check mark

1. Disable the blower output drive voltage as follows:

Check mark

(a) Press the MENU key until CONFIGURATION MENU is displayed.

Check mark

(b) Press the ▲ arrow key until the ANALOG OUTPUT function is displayed, then press the CHANGE key.

Check mark

(c) Press the ▼ arrow key until OFF is displayed, then press the ENTER key.

Check mark

2. Start the unit in the Manual Mode at a valve position between 25% and 30%.

Check mark

3. The unit should shut down and lockout, showing AIRFLOW FAULT DURING PURGE in the display.

Run this procedureArrow right

Low Water Level Fault Test

Check mark

Set the ON/OFF switch to the OFF position

Check mark

Close the water shut-off valves in the supply and return piping to the unit

Check mark

Slowly open the drain valve on the rear of the unit

Check mark

Continue draining the unit until a LOW WATER LEVEL fault message is displayed and the FAULT indicator flashes

Check mark

Place the unit in the Manual Mode and raise the valve position above 30%

Check mark

Set the ON/OFF switch to the ON position. The READY light should remain off and the unit should not start

Check mark

Close the drain and pressure relief valve used in draining the unit

Check mark

Open the water shut-off valve in the return piping to the unit

Check mark

Open the water supply shut-off valve to the unit to refill

Run this procedureArrow right

Parts for AERCO International Boiler Benchmark 2000

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Condensate Drain Trap

24060

Maintenance Kit

58025-01

Waterside/Fireside Inspection Kit

58025-13

Igniter-Injector

66013

Flame Detector

66020

Condensate Drain Trap

24060

Maintenance Kit

58025-01

Waterside/Fireside Inspection Kit

58025-13

Igniter-Injector

66013

Flame Detector

66020

Condensate Drain Trap

24060

Maintenance Kit

58025-01

Waterside/Fireside Inspection Kit

58025-13

Igniter-Injector

66013

Flame Detector

66020
