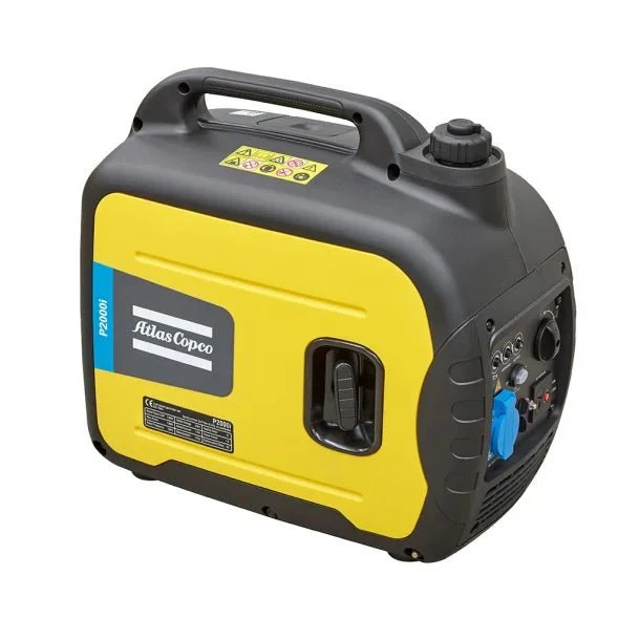

Atlas Copco Portable Inverter Generator P2000i

WARNING! Avoid draining the engine oil immediately after stopping the engine. The oil is hot and should be handled with care to avoid burns

Place the generator on a level surface and warm up the engine for several minutes. Stop the engine and turn the 3 in 1 switch knob and fuel tank cap air vent knob to 'OFF'

Remove the screw * and then remove the oil filler decal

Place an oil pan under the engine. Tilt the generator to drain the oil completely

NOTICE! Do not tilt the generator when adding engine oil. This could result in overfilling and damage to the engine

Replace the generator to a level surface

Add engine oil to the upper level

Wipe the cover clean, and and wipe up any spoiled oil

Check fuel hose for cracks or damage. Replace if necessary

Check hose weather for cracks or damages. Replace if necessary

Decarbonize cylinder head. More frequently is necessary

Check and adjust valve clearance when engine is cold

Check all fittings and fasteners. Correct if necessary

Sign off on the generator maintenance

Cap I and spark plug cap 2 removed

Tool 4 inserted through the hole from the outside of the cover

Handlebar 3 inserted into the tool 4 and turned counterclockwise to remove the spark plug

Spark plug discoloration checked

Porcelain insulator around the center electrode of spark plug checked and is a medium to light tan color

Spark plug type and gap checked

Remove the screws remove the cover, and then drain the fuel

Hold and move up the clamp, then take off the hose from the tank

Install the hose and clamp, then open the fuel valve to check for leaks

Install the cover and tighten the screws

Sign off on the fuel filter cleaning
