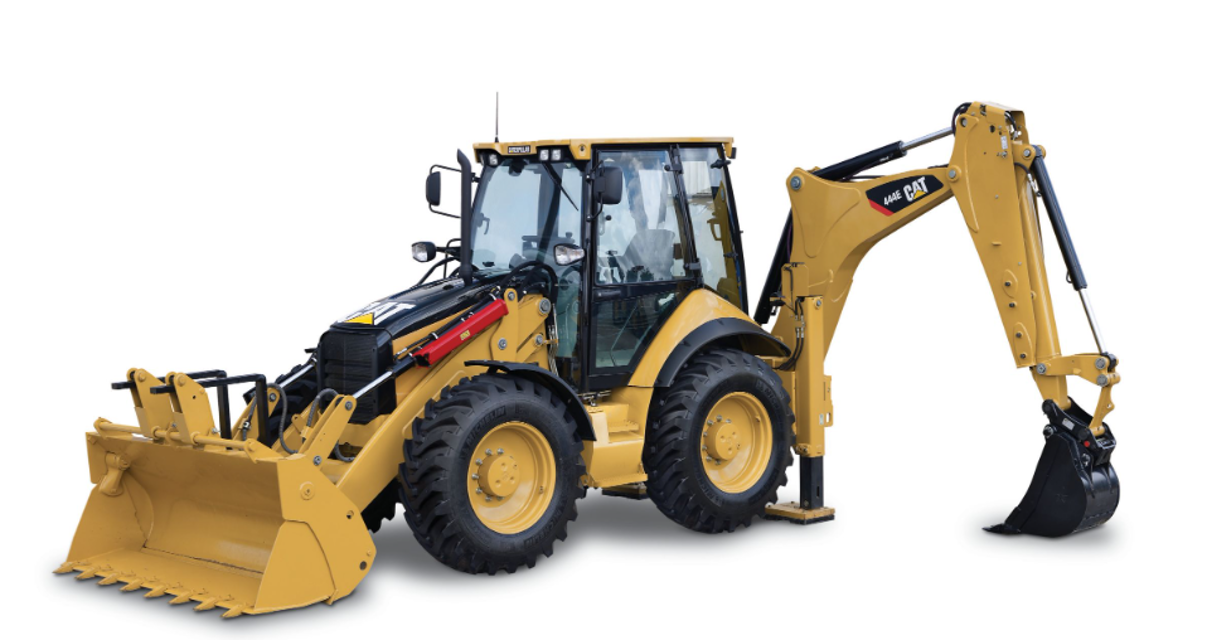

Caterpillar Caterpillar Backhoe Loader 444E 444E

Is the date of installation label present?

If the date of installation label is missing, replace belt within 3 years from the year of manufacture as indicated on belt webbing label, buckle housing, or installation tags (non-retractable belts).

Year of manufacture as indicated on belt webbing label, buckle housing, or installation tags (non-retractable belts)

Consult your Cat dealer for the replacement of the seat belt and the mounting hardware.

Manufacture date of new seat belt

Does the manufacture date of new seat belt exceed install by date on label?

Complete seat belt system should be installed with new mounting hardware.

Engine Crankcase Breather - Replace

Loosen the clamp (9) and remove the hose (10) from the connector (12)

Remove the setscrews (8) and remove the connector (12) from the cylinder head. Remove the gasket (13). Remove the O-ring seal (11) from the connector. Discard the gasket (13) and the O-ring seal (11)

Remove the cover (1) from the valve mechanism cover (5)

WARNING: Personal injury can result from parts and/or covers under spring pressure. Spring force will be released when covers are removed. Be prepared to hold spring loaded covers as the bolts are loosened.

Remove the screws (2). Remove the plate (3)

Remove the diaphragm (4) and the cap (6). Remove the spring (7). Discard diaphragm (4)

WARNING: Improper assembly of parts that are spring loaded can cause bodily injury. To prevent possible injury, follow the established assembly procedure and wear protective equipment.

Install the spring (7), the cap (6), and a new diaphragm (4)

NOTICE: Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.

Refer to Special Publication, NENG2500, “Caterpillar Dealer Service Tool Catalog” for tools and supplies suitable to collect and contain fluids on Caterpillar products. Dispose of all fluids according to local regulations and mandates.

Obtain the sample of the coolant as close as possible to the recommended sampling interval. Supplies for collecting samples can be obtained from your Caterpillar dealer.

Refer to Operation and Maintenance Manual, “Cooling System Coolant Sample (Level 1) - Obtain” for the guidelines for proper sampling of the coolant.

Submit the sample for Level 2 analysis.

Reference: For additional information about coolant analysis, refer to Special Publication, SEBU6250, “Caterpillar Machine Fluids Recommendations” or consult your Caterpillar dealer.

Upload a photo of the coolant sample

Sign off on the coolant sample collection

Backhoe Control Console Latch - Lubricate

Steps to lubricate the Backhoe Control Console Latch

Cooling System Coolant Sample (Level 1) - Obtain

Steps to obtain Cooling System Coolant Sample

Differential Oil Sample (Front) - Obtain

Steps to obtain Differential Oil Sample (Front)

Differential Oil Sample (Rear) - Obtain

Steps to obtain Differential Oil Sample (Rear)

1. Clean the area around the breathers. Remove the breather from the front axle.

2. Wash the breather in clean nonflammable solvent. Wipe the breather dry and check the breather for damage.

3. Install the clean breather back into the axle. Replace the breather if the breather is damaged.

Note: Make sure that the slot in the breather is parallel to the axle housing.

If new belts are installed, check belt adjustment after 30 minutes of operation. For multiple belt drive applications, always replace the belts in matched sets. Replacing only one belt of a matched set will cause the new belt to carry more load because the older belts are stretched. The additional load on the new belt could cause the new belt to break.

2. Inspect the condition of the serpentine belt. If the belt is worn or frayed, replace the belt.
