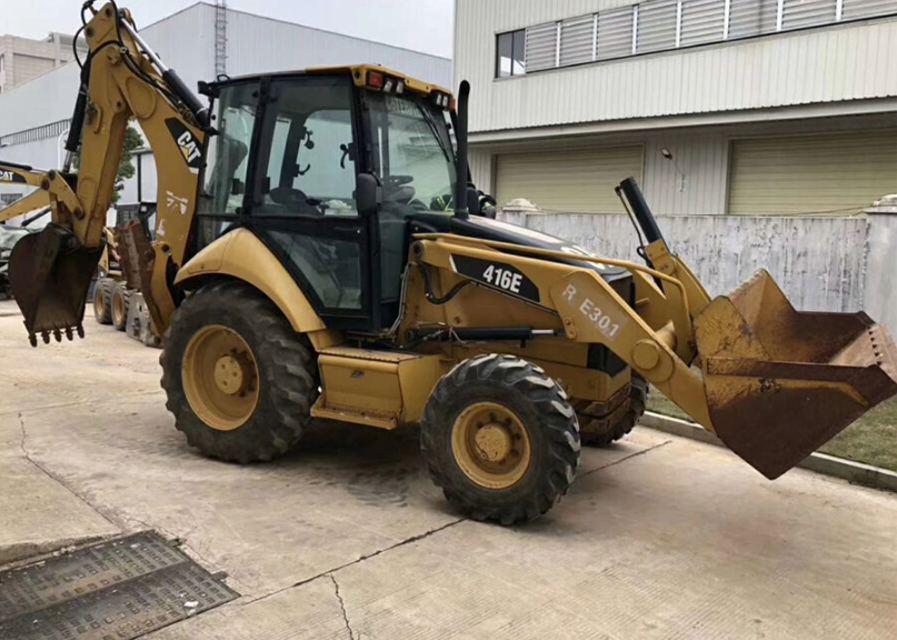

Caterpillar Caterpillar Backhoe Loader 416E 416E

Always recycle a battery. Never discard a battery.

Always return used batteries to one of the following locations:

• An authorized battery collection facility

Battery or Battery Cable - Inspect/Replace

1. Turn the engine start switch to the OFF position. Turn all switches to the OFF position.

2. Disconnect the negative battery cable from the frame.

Differential Oil (Front) - Change

1. Remove oil drain plug (1) and drain the oil into a suitable container.

2. The drain plug is magnetic. Check the plug for metal.

3. Clean the drain plug and install the drain plug.

4. Remove oil level/fill plug (2).

5. Add oil until the oil is level with the threads for the filler plug. Refer to Operation and Maintenance Manual, “Lubricant Viscosities” and Operation and Maintenance Manual, “Capacities (Refill)” for oil.

6. Clean the filler plug and install the filler plug.

Differential Oil (Rear) - Change

The oil change interval should be decreased to 500 hours if more than 50% of the service hours is used for roading and loading.

Backhoe Control Console Latch - Lubricate

1. Remove the three bolts and remove the console(1).

2. Place the latch in the closed position.

3. Apply 242-6990 Lubricant onto the following:

• Pivot for the release lever (2)

• Notches and catch for the rotor (5)

• Contact for the release lever (6)

Engine Crankcase Breather - Replace

Loosen the clamp (9) and remove the hose (10) from the connector (12)

Remove the setscrews (8) and remove the connector (12) from the cylinder head. Remove the gasket (13). Remove the O-ring seal (11) from the connector. Discard the gasket (13) and the O-ring seal (11)

Remove the cover (1) from the valve mechanism cover (5)

WARNING: Personal injury can result from parts and/or covers under spring pressure. Spring force will be released when covers are removed. Be prepared to hold spring loaded covers as the bolts are loosened

Remove the screws (2). Remove the plate (3)

Remove the diaphragm (4) and the cap (6). Remove the spring (7). Discard diaphragm (4)

WARNING: Improper assembly of parts that are spring loaded can cause bodily injury. To prevent possible injury, follow the established assembly procedure and wear protective equipment

Install the spring (7), the cap (6), and a new diaphragm (4)

Note: A qualified service person should perform the valve lash check and/or the valve lash adjustment. Special tools and training are required.

Was the valve lash check performed successfully?

If not, describe the issues encountered

Sign off on the valve lash check
