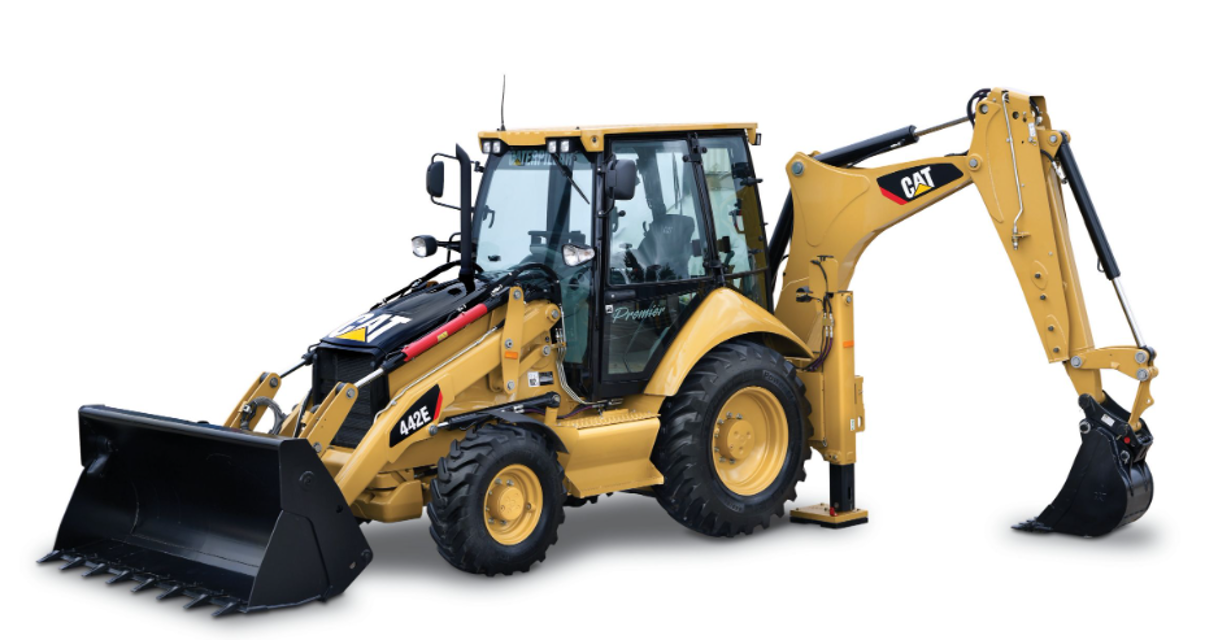

Caterpillar Caterpillar Backhoe Loader 442E 442E

1. Clean the area around the breathers. Remove the breather from the front axle.

2. Wash the breather in clean nonflammable solvent. Wipe the breather dry and check the breather for damage.

3. Install the clean breather back into the axle. Replace the breather if the breather is damaged.

Note: Make sure that the slot in the breather is parallel to the axle housing.

If new belts are installed, check belt adjustment after 30 minutes of operation. For multiple belt drive applications, always replace the belts in matched sets. Replacing only one belt of a matched set will cause the new belt to carry more load because the older belts are stretched. The additional load on the new belt could cause the new belt to break.

2. Inspect the condition of the serpentine belt. If the belt is worn or frayed, replace the belt.

Is the date of installation label present?

If the date of installation label is missing, replace belt within 3 years from the year of manufacture

Year of manufacture as indicated on belt webbing label, buckle housing, or installation tags

Consult your Cat dealer for the replacement of the seat belt and the mounting hardware

Does the new seat belt exceed the install by date on label?

Complete seat belt system should be installed with new mounting hardware

Backhoe Control Console Latch - Lubricate

Steps to lubricate the Backhoe Control Console Latch

Cooling System Coolant Sample (Level 1) - Obtain

Steps to obtain Cooling System Coolant Sample

Differential Oil Sample (Front) - Obtain

Steps to obtain Differential Oil Sample (Front)

Differential Oil Sample (Rear) - Obtain

Steps to obtain Differential Oil Sample (Rear)

NOTICE: Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.

Refer to Special Publication, NENG2500, “Caterpillar Dealer Service Tool Catalog” for tools and supplies suitable to collect and contain fluids on Caterpillar products. Dispose of all fluids according to local regulations and mandates.

Supplies for collecting samples obtained from your Caterpillar dealer?

Refer to Operation and Maintenance Manual, “Cooling System Coolant Sample (Level 1) - Obtain” for the guidelines for proper sampling of the coolant.

Sample of the coolant obtained as close as possible to the recommended sampling interval?

Submit the sample for Level 2 analysis.

Reference: For additional information about coolant analysis, refer to Special Publication, SEBU6250, “Caterpillar Machine Fluids Recommendations” or consult your Caterpillar dealer.

Sign off on the coolant sample collection and submission
