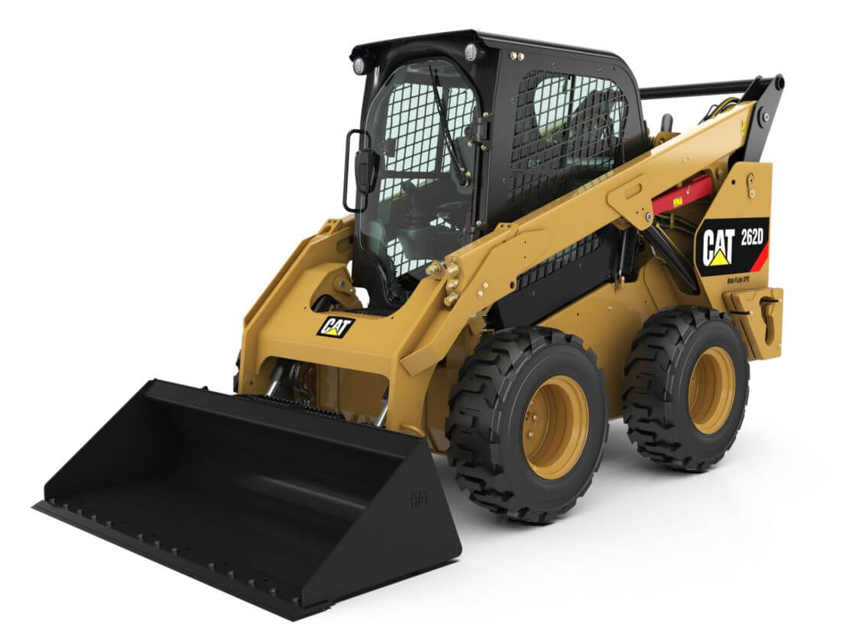

CAT Skid Steer Loader 262D

Note: All models except for 226D, 232D, 239D, and 249D.

Open the engine access door. Refer to Operation and Maintenance Manual, “Access Doors and Covers”.

The release latch for the guard is located on the rear of the radiator. Pull the rubber T-handle down to release the guard. Tilt the guard upward.

To raise the radiator, remove the two bolts.

Raise the radiator. As the radiator raises, the latch will move (1).

Raise the radiator until the latch moves over the catch pin (2).

To lower the radiator downward, push up on the radiator. Move the latch to unlatch the lock. Lower the radiator.

Install the two bolts to secure the radiator.

To lower the radiator guard, move the support rod to the storage position and lower the guard.

Inspect the track visually for damage or missing fasteners. Replace any grousers that are damaged and replace any fasteners that are missing.

To adjust the tension, there is a greaser valve on the recoil group. To relax the tension on the track, loosen the greaser with an appropriate wrench or socket. To tighten the tension on the track, make sure that the greaser is tight. Apply grease to the greaser until the proper tension is achieved.

Note: Turn the greaser a maximum of one full turn when releasing track tension.

Check the torque for the track grouser bolts and the master link bolts. Torque to the required value of 280 ± 15 N·m (206 ± 11 lb ft).

Inspect the track visually for damage or missing fasteners

Enter the torque for the track grouser bolts and the master link bolts

Remove the access panel on the side of the undercarriage

Use a grease gun in order to apply grease to the grease fitting on the cylinder

Replace the access panel when the desired sag is achieved

Sign off on the Skid Steer Loader Maintenance

Cooling System Coolant Sample (Level 2) - Obtain

NOTICE: Always use a designated pump for oil sampling, and use a separate designated pump for coolant sampling.

Warning: Pressurized system: Hot coolant can cause serious burn. To open cap, stop engine, wait until radiator is cool. Then loosen cap slowly to relieve the pressure.

Sample of the coolant obtained from the radiator?

Note: Do not take the sample from the Coolant Overflow Reservoir.

Submit the sample for Level 2 analysis.

Hydraulic oil tank cap removed?

Access panel in the belly guard underneath the machine removed?

Air Conditioner Condenser - Clean

Personal injury can result from air pressure.

Personal injury can result without following proper procedure. When using pressure air, wear a protective face shield and protective clothing.

Maximum air pressure at the nozzle must be less than 205 kPa (30 psi) for cleaning purposes.

The air conditioner condenser is attached to the engine access door.

Note: Blow compressed air through the core in the opposite direction of air flow to clean condenser.

Single Level Suspension (SLS) undercarriage

Dual Level Suspension (DLS) undercarriage
