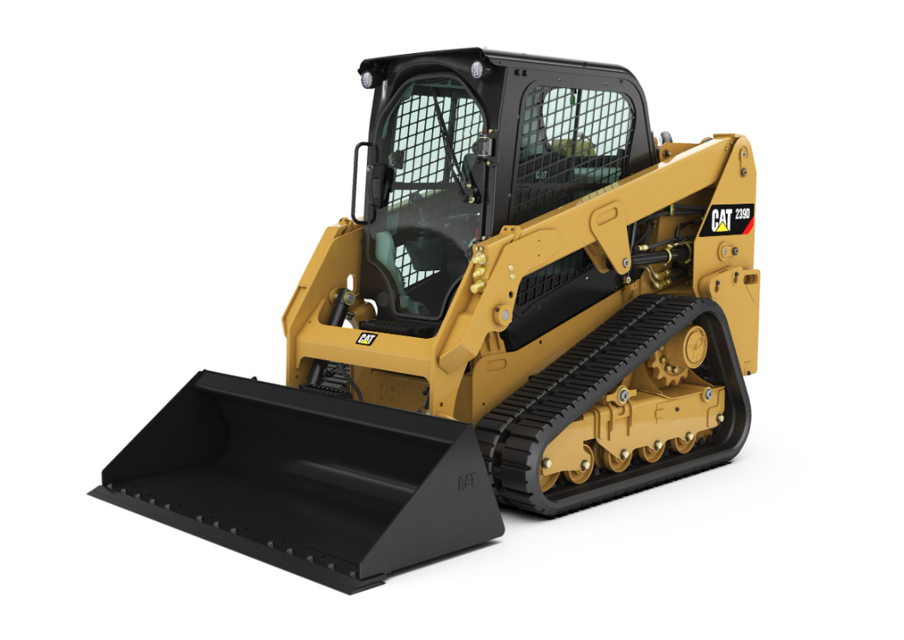

CAT Skid Steer Loader 239D

Engine Crankcase Breather - Replace

Note: Only applies to engines with aftertreatment.

Open the engine access door. Refer to Operation and Maintenance Manual, “Access Doors and Covers”.

Tilt the radiator upward. Refer to Operation and Maintenance Manual, “Radiator Tilting”.

The breather is located in the engine compartment on the right-hand side of engine. There is cap on the breather and a replaceable element inside.

Note: This service may be performed without removing the housing from the engine.

Remove the breather cap and remove the filter element.

Note: The C2.2 and C3.3B are equipped with cap on bottom portion of the canister. Use a wrench to remove the breather cap. The C3.8 is equipped with cap on top of canister, remove cap by applying downward pressure on the cap while turning.

Clean the housing and the cap for the breather.

Inspect the track visually for damage or missing fasteners

Replace any grousers that are damaged

Replace any fasteners that are missing

Loosen the greaser with an appropriate wrench or socket to relax the tension on the track

Tighten the greaser to tighten the tension on the track

Apply grease to the greaser until the proper tension is achieved

Is the date of installation label present?

If the date of installation label is missing, replace belt within 3 years from the year of manufacture

Year of manufacture as indicated on belt webbing label, buckle housing, or installation tags

Consult your Cat dealer for the replacement of the seat belt and the mounting hardware

Does the new seat belt exceed the install by date on label?

Complete seat belt system should be installed with new mounting hardware

Air Cleaner Dust Valve - Clean/Inspect

Bogie and Idler - Inspect/Replace

Engine Compartment - Inspect/Clean

Equipment Lowering Control Valve - Check

Fuel System Primary Filter (Water Separator) Drain

Warning: Fingers can be burned from hot pins and bushings. The pins and bushings in a dry joint can become very hot. It is possible to burn the fingers if there is more than brief contact with these components.

Use the recommendations to extend the life of the undercarriage. Use the recommendations to avoid excessive downtime.

During the machine operation, listen for unusual squeaking and for unusual squealing. This noise can indicate a dry joint.

Check the machine for dry joints weekly. Check for dry joints immediately after machine operation.

After machine operation, lightly touch the end of each track pin or bushing. Touch the track pin or the track bushing with the back of your hand. Make a mark on any dry track pin joint that is hot to the touch.

Consult the Custom Track Service expert at any Cat dealer if you detect dry joints or leaks. The Custom Track Service expert at the Cat dealer can perform track inspection.

Sign off on the 50 Hourly Skid Steer Loader Maintenance
