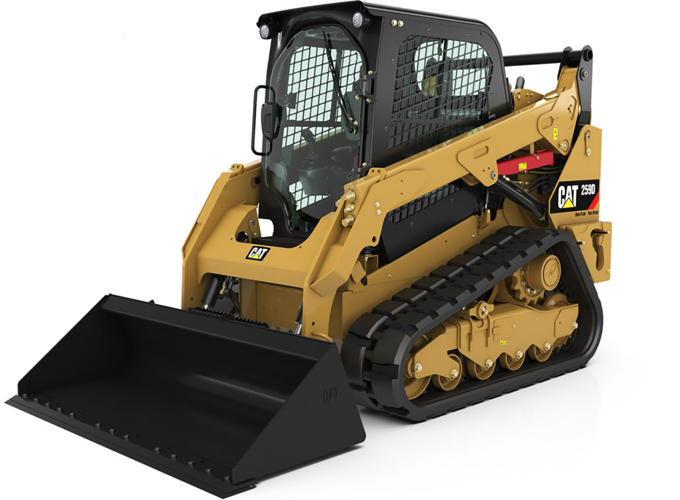

CAT Skid Steer Loader 259 D Skid Steer

Warning: Pressurized system: Hot coolant can cause serious burn. To open cap, stop engine, wait until radiator is cool. Then loosen cap slowly to relieve the pressure.

NOTICE: Mixing ELC with other products will reduce the effectiveness of the coolant. This could result in damage to cooling system components.

If Caterpillar products are not available and commercial products must be used, make sure they have passed the Caterpillar EC-1 specification for premixed or concentrate coolants and Caterpillar Extender.

Note: The machine was shipped from the factory with Extended Life Coolant (ELC) in the cooling system.

For information about the addition of Extender to your cooling system, see the Operation and Maintenance Manual, “Cooling System Coolant (ELC) Extender - Add” or consult your Cat dealer.

Drain the coolant whenever the coolant is dirty or whenever the coolant is foaming.

The radiator cap is located under the radiator guard on the top of the engine compartment.

Allow the machine to cool before you change the coolant.

Open the engine access door and raise the radiator guard. Refer to Operation and Maintenance Manual, “Access Doors and Covers”.

Cooling System Coolant Extender (ELC) - Add

When a Cat Extended Life Coolant is used, an extender must be added to the cooling system periodically.

Open the engine access door and raise the radiator guard. Refer to Operation and Maintenance Manual, “Access Doors and Covers”.

Note: The radiator cap may be located either on the left side of the radiator (C3.3B and C3.8 engines) or the right side of the radiator (C2.2 engine).

Slowly loosen the radiator cap in order to relieve system pressure. Remove the radiator cap.

If necessary, drain enough coolant from the radiator in order to allow the addition of the coolant additive.

Add 0.17 L (0.18 qt) of cooling system additive.

Inspect the radiator cap and the gasket. If the cap or the gasket is damaged, replace the cap. Install the radiator cap.

Check the coolant level in the sight gauge on the radiator. Maintain the coolant level to the top of the sight gauge with the radiator in the LOWERED position.

Warning: Personal injury can result from hydraulic oil pressure and hot oil. Hydraulic oil pressure can remain in the hydraulic system after the engine has been stopped. Serious injury can be caused if this pressure is not released before any service is done on the hydraulic system. Make sure all of the attachments have been lowered, oil is cool before removing any components or lines. Remove the oil filler cap only when the engine is stopped, and the filler cap is cool enough to touch with your bare hand.

Start the engine and allow the engine to run for at least 15 seconds to recharge the accumulator.

Stop the engine. Keep the armrests in the LOWERED position. Turn the engine start switch to the ON position. Push the parking brake switch.

Move the electrohydraulic controls through all the positions.

Toggle the auxiliary switch multiple times.

Turn the engine start switch to the OFF position. The pressure in the hydraulic system has now been released.

Note: Some hydraulic lines on the downstream side of the accumulator may still contain pressurized oil. Use caution when you disconnect these hydraulic lines.

Sign off on the pressure release procedure

Note: All models except for 226D, 232D, 239D, and 249D.

Open the engine access door. Refer to Operation and Maintenance Manual, “Access Doors and Covers”.

The release latch for the guard is located on the rear of the radiator. Pull the rubber T-handle down to release the guard. Tilt the guard upward.

To raise the radiator, remove the two bolts.

Raise the radiator. As the radiator raises, the latch will move (1).

Raise the radiator until the latch moves over the catch pin (2).

To lower the radiator downward, push up on the radiator. Move the latch to unlatch the lock. Lower the radiator.

Install the two bolts to secure the radiator.

To lower the radiator guard, move the support rod to the storage position and lower the guard.

Is the date of installation label present?

If the date of installation label is missing, replace belt within 3 years from the year of manufacture

Year of manufacture as indicated on belt webbing label, buckle housing, or installation tags

Consult your Cat dealer for the replacement of the seat belt and the mounting hardware

Does the age of new seat belt exceed install by date on label?

Complete seat belt system should be installed with new mounting hardware
