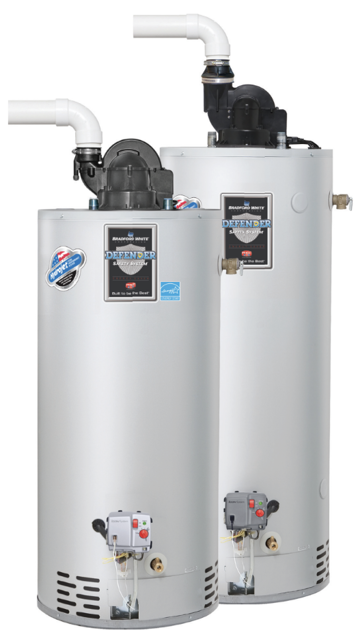

Bradford White Water Heater RG1PV55H6N19

Position gas control power switch to 'OFF' position

Remove the three screws from control access cover on blower assembly and remove cover

Remove pressure switch from blower housing by removing the two T10 screws or carefully remove it from the housing if it does not have screws

Disconnect tubing from pressure switch

Disconnect yellow wires from pressure switch

Reconnect yellow wires to new pressure switch

Reconnect tubing to new pressure switch

Carefully position pressure switch into blower housing

WARNING — 115 volt potential exposure. Use caution to avoid personal injury

Position gas control power switch to 'ON' position and adjust control to call for heat

Remove the three screws from control access cover on blower assembly

Blower Temperature Switch Testing

Position power switch on gas control to the “OFF” position

Remove the three screws from control access cover on blower and remove cover

Locate blower temperature switch

Position power switch on gas control to the “OFF” position

Remove the three screws from control access cover on blower assembly and remove cover

Remove pressure switch from blower housing

Resume operation following the lighting instructions

Use caution to avoid personal injury due to 115 volt potential exposure

Position gas control power switch to the “OFF” position and unplug heater from wall outlet.

Turn off gas supply to water heater.

Remove outer jacket door and inner door per service procedure XIII on page 39.

Disconnect pilot tube (7/16” wrench) and feedline (3/4” wrench) from gas control.

Disconnect igniter/flame sensor wire from gas control.

Remove burner assembly from combustion chamber.

Inspect burner surface area and burner port area and remove any loose debris.

Unscrew burner from main burner orifice.
