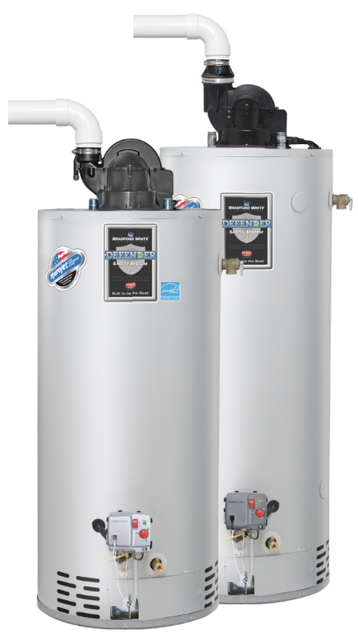

Bradford White Water Heater RG1PV50S6N19

Position gas control power switch to 'ON' position and adjust control to call for heat

Remove the three screws from control access cover on blower assembly using a Phillip’s screw driver

Refer to photo 7 for guidance on removing the cover

Inspect the pilot burner for proper operation and stability of the flame.

Identify causes for an unstable pilot flame, if any

Check that the main burner lights smoothly from the pilot and burns with a blue flame with minimal yellow tips.

Is the main burner free from any debris accumulation?

Reset the gas control after an error code (4)

Gas Control Disassembly/Reassembly

Set the gas control to the 'OFF' position

Turn off gas supply to water heater

Disconnect gas supply line from gas control

Disconnect igniter/flame sensor wire

Position power switch on gas control to the “OFF” position.

Remove the three screws from control access cover on blower assembly and remove cover.

Remove pressure switch from blower housing

Note any warnings or potential hazards encountered during the procedure.

To resume operation, follow the instructions located on the lighting instruction label or the lighting instructions located in the installation and operation manual.

Remove three screws from control access cover on blower
