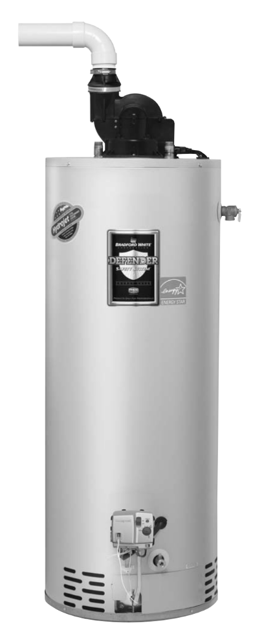

Bradford White Water Heater M1TW40S10FBN

Need answers fast?
Explore the manual using AI.

Bradford White Water Heater M1TW40S10FBN
Bradford White Water Heater M1TW40S10FBN

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Bradford White Water Heater M1TW40S10FBN

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Bradford White Water Heater M1TW40S10FBN

Bradford White Water Heater M1TW40S10FBN

Create an account to install this asset package.

Maintenance Plans for Bradford White Water Heater Model M1TW40S10FBN

Integrate maintenance plans directly into your work orders in MaintainX.

Pressure Switch Maintenance

Check mark

Pressure Switch Replacement

Check mark

Position gas control power switch to 'OFF' position.

Check mark

Remove the three screws from control access cover on blower assembly and remove cover.

Check mark

Carefully remove pressure switch from blower housing.

Check mark

Disconnect tubing from pressure switch.

Check mark

Disconnect yellow wires from pressure switch.

Check mark

Reconnect wires to new pressure switch.

Check mark

Reconnect tubing to new pressure switch.

Check mark

Carefully position pressure switch into blower housing.

Run this procedureArrow right

Burner Air Shutter Calibration

Check mark

Cast Iron Burner Air Shutter Adjustment

Check mark

Remove outer jacket door and slide inner door from left to right to open

Check mark

Adjust air shutter for proper burning

Check mark

Is the flame blue with a minimum of yellow tips?

Check mark

Is the burner operation noisy or is there soot formation?

Check mark

Close inner door and observe burner operation

Check mark

Does the burner operate as adjusted with the inner door closed?

Run this procedureArrow right

120 VAC Circuit Testing

Check mark

120 VAC Circuit Trace

Check mark

Verify 120VAC and proper polarity at wall outlet.

Check mark

With unit plugged in and control power switch in the “ON” position, verify LED status.

Check mark

LED status options

Check mark

Using a volt meter set to volts AC, is there 120VAC across terminals shown in photo 29?

Check mark

Is there 120VAC across terminals shown in photo 30?

Check mark

Is there 120VAC across black & white wires as shown in photo 32?

Check mark

Check for 120VAC between black & white wires.

Check mark

Verify error code as listed on page 13.

Run this procedureArrow right

Flue Baffle Inspection

Check mark

Remove Blower To Gain Access To Flue Baffle

Check mark

Position gas control power switch to the “OFF” position and unplug blower from wall outlet.

Check mark

Disconnect vent system from exhaust adapter on top of blower.

Check mark

Unplug cord sets from blower.

Check mark

Remove the three blower mounting screws using a ¼" nut driver.

Check mark

Remove blower with gasket from water heater.

Check mark

Remove flue baffle from Heater.

Check mark

Inspect baffle for deterioration, missing restrictors, and clean any scale or debris build up. Replace with new baffle as necessary.

Check mark

Reinstall baffle into flue tube ensuring baffle hanger tab are inserted into notch location at the top of the flue tube.

Run this procedureArrow right

Blower Maintenance

Check mark

Blower Removal

Check mark

Position gas control power switch to the “OFF” position.

Check mark

Unplug blower power cord from wall outlet.

Check mark

Disconnect vent system from exhaust adapter on top of blower.

Check mark

Remove exhaust adapter from blower (blade screw driver) and retain for use on new blower.

Check mark

Unplug cord sets from blower.

Check mark

Remove the three blower mounting screws (¼" nut driver).

Check mark

Remove blower with gasket from water heater.

Check mark

Blower Installation

Run this procedureArrow right

Parts for Bradford White Water Heater M1TW40S10FBN

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Gas Control Service Tool

239-45991-00

Gas Control Service Tool

239-45991-00

Gas Control Service Tool

239-45991-00
