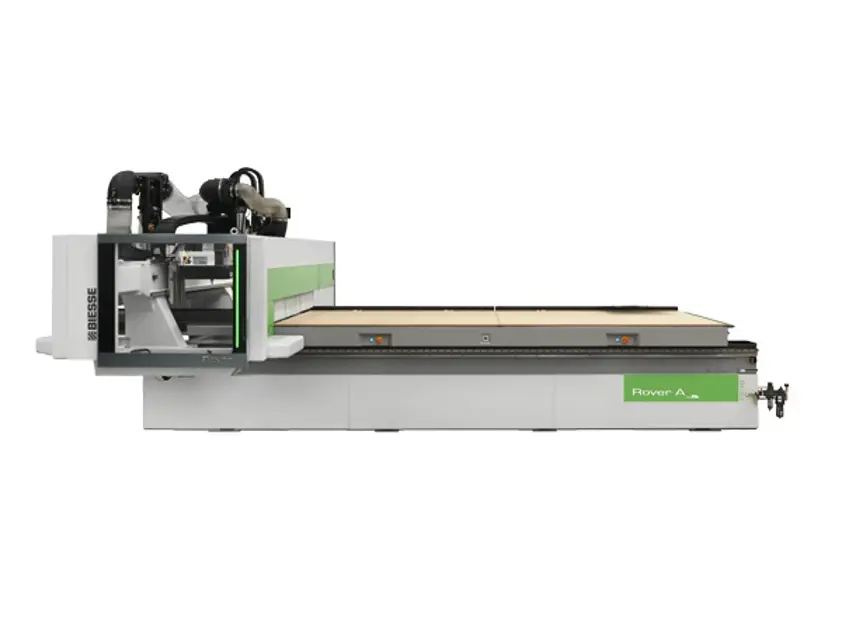

Biesse Machine Rover A 2264 G FT

The vacuum pump bearings must be lubricated through the greasing nipples A with the pump operating, using the syringe provided filled with KLÜBER AMBLYGON TA 15/2 type grease (pump in 10 grammes of grease).

Make sure everything is kept as clean as possible during this operation.

2. Remove the cover B. To carry out this operation, after unscrewing the bolts that fasten the cover, screw two bolts evenly into the holes C, making sure the cover is not tilted to the side.

3. Remove the blades D and check they do not exceed the minimum limit of 41 mm. If necessary, replace them. Make sure you assemble the blades the right way round.

4. When performing this operation, also check the gaskets and bearing for wear.

Lubricating the HSK F63 electrospindle unlocking device

Did you apply METAFLUX Fett-Paste 70-8508 grease on the electrospindle unlocking device?

Did you spread the grease evenly using a collet spindle?

Did you remove any excess grease with a clean cloth?

Checking the connections of the electrospindles

Are the electrical cables undamaged?

Are the connectors firmly fixed?

Are the seals of the pipes of the pneumatic system and the cooling circuit connections intact?

Go to the site http://www2.biesse.it/home/antivirus.asp

Run the Avira Antivir Professional application software, click on “Update” and “Manual update”

Open the previously downloaded file. The update will start automatically

Cleaning the Revolver tool magazine photocell

Clean the photocell that detects the position of the magazine tools with a soft, dry cloth

Replacing the oil separator filter cartridge

Make sure there is no pressure in the system; the supply pressure gauge must indicate 0 bar

General cleaning of the machine

Proper cleaning of the machine and the surrounding area

Use a vacuum cleaner to remove any wood chips

Use a compressor to remove fine dust

Never use compressed air to clean the electrical cabinet

Clean the various operating section covers using soap and water only

Inspection of the condition of the cams and their safety switches

Busch Mink vacuum pump maintenance

Is the vacuum pump operational?

If the vacuum pump is not operational, report the issues to the maintenance team and stop the procedure

If the net filter is not clean, clean it according to the instructions supplied with the vacuum pump

Sign off on the vacuum pump maintenance
