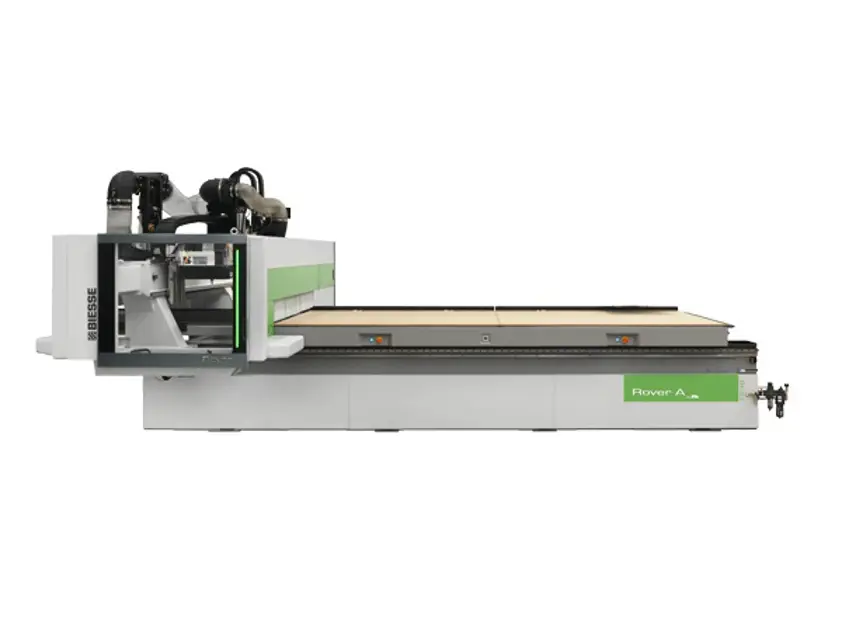

Biesse Machine Rover A 1536 G FT

The vacuum pump bearings must be lubricated through the greasing nipples A with the pump operating, using the syringe provided filled with KLÜBER AMBLYGON TA 15/2 type grease (pump in 10 grammes of grease).

Make sure everything is kept as clean as possible during this operation.

2. Remove the cover B. To carry out this operation, after unscrewing the bolts that fasten the cover, screw two bolts evenly into the holes C, making sure the cover is not tilted to the side.

3. Remove the blades D and check they do not exceed the minimum limit of 41 mm. If necessary, replace them. Make sure you assemble the blades the right way round.

4. When performing this operation, also check the gaskets and bearing for wear.

14.4 Updating the antivirus system

Go to the site http://www2.biesse.it/home/antivirus.asp from the machine's PC

Download the 'Download antivir update' file

Run the Avira Antivir Professional application software, click on 'Update' and 'Manual update'

Open the previously downloaded file. The update will start automatically

14.14 Cleaning the Revolver tool magazine photocell

Clean the photocell that detects the position of the magazine tools (ref. A) with a soft, dry cloth

Replacing the oil separator filter cartridge

Lubrication and cleaning of the boring spindle gears

To lubricate the boring spindle gears, proceed as follows:

1. Fill the pump provided with MOBILTEMP SHC 100 lubricant.

2. Insert the pump in the greasing nipple A and pump in 8 grammes of lubricant (approximately 10 strokes of the pump).

Every 5 strokes of the pump, turn the spindles manually to distribute the lubricant evenly. To carry out this operation, proceed as follows:

• Lower a spindle (preferably one that is not fitted with a tool). For the boring unit with snap-on coupling spindles it is necessary to lower 2 spindles, one right and one left.

• Insert the screw into the tool fixing bore, so that it can be used to turn the spindles easily.

• Turn the spindles, turning 5 times in one direction and 5 in the opposite direction.

Busch Mink vacuum pump maintenance

Is the vacuum pump operational?

If the vacuum pump is not operational, report the issues to the maintenance team and stop the procedure

If the net filter is not clean, clean it according to the instructions supplied with the vacuum pump

Sign off on the vacuum pump maintenance

Check for dirt or dust in the Busch Mink vacuum pump

Check the oil level in the gear box using the indicator A

Is the oil level below the minimum notch?

If the oil level is below the minimum notch, this means there is a leakage. Contact the Biesse Service Centre.

Sign off on the machine maintenance
