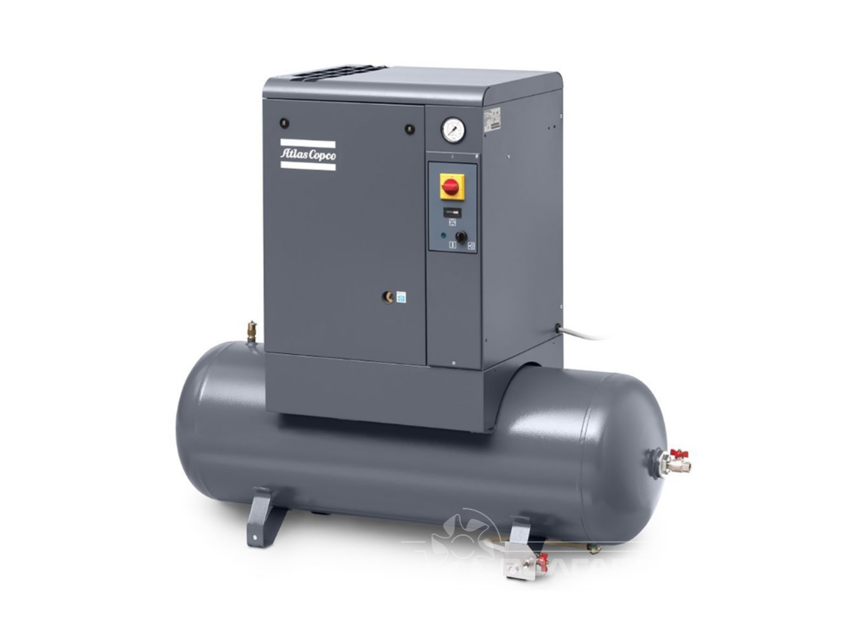

Atlas Copco Oil-Injected Rotary Screw Compressor GX7 FF
Create an account to install this asset package.
Maintenance Plans for Atlas Copco Oil-Injected Rotary Screw Compressor Model GX7 FF
Integrate maintenance plans directly into your work orders in MaintainX.
Oil-Injected Rotary Screw Compressor Belt Tension Check
Preparation
Stop the compressor
Close the air outlet valve
Switch off the voltage
Access the Belts
Remove the front door
Remove the internal panel
Belt Tension Check
Measure the force applied at the midpoint of the belts
3 Monthly Oil-Injected Rotary Screw Compressor Maintenance
Condensate Trap Inspection
Inspect the operation of the condensate trap
Clean filter DA
PDX Filter Check
Does the compressor have a PDX filter?
Check the service indicator on the PDX filter
Is the PDX filter service indicator showing replacement is necessary?
Replace the PDX filter if necessary
Air Filter Inspection
1 Daily Condendaste Draining
Compressor Shutdown
Push the stop button on the control panel
Wait for 120 seconds for the compressor to stop
Did the automatic operation LED go out?
Emergency Stop Procedure
Was the emergency stop button used?
Unlock the emergency stop button by pulling it out, if used
Valve Operations
Close air outlet valve
Oil-Injected Rotary Screw Compressor Drive Belt Replacement
Preparation
Stop the compressor
Close the air outlet valve
Switch off the voltage
Disassembly
Remove the following components
Loosen the 4 bolts by one turn
Release the belt tension by loosening tensioning nut
Remove the fan duct
Oil-Injected Rotary Screw Compressor Belt Tension Adjustment
Preparation
Stop the compressor
Close the air outlet valve
Switch off the voltage
Disassembly
Remove the front door
Remove the internal panel
Remove the top cover
Remove the pulley protection
Unlock
