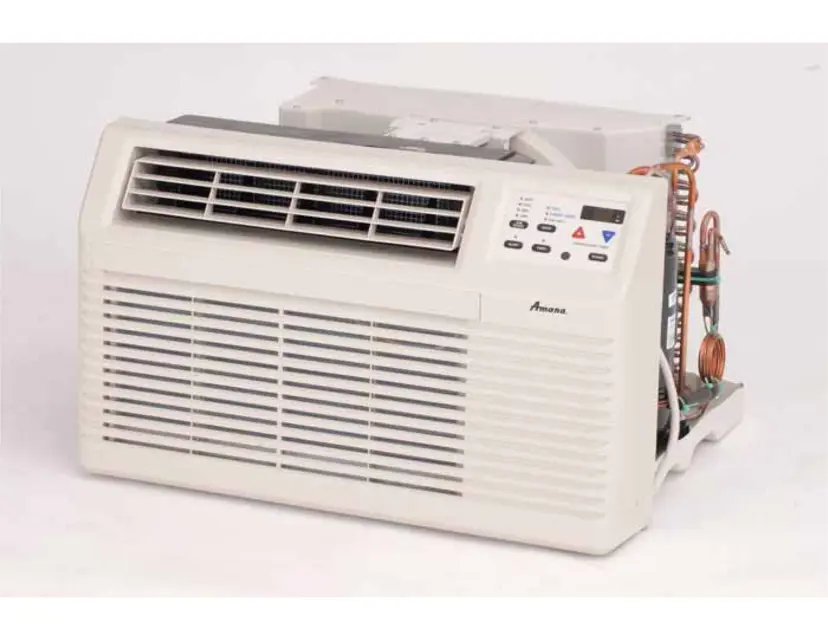

Amana Air Conditioner PBE093J35AA

Unplug the air conditioner to prevent shock or fire hazards.

Check if the air filter needs cleaning.

Remove the front grille from the unit by grabbing it from both sides and pulling towards you.

Open the front grille to reveal the filter inside.

Grasp and pull out the air filter.

Ensure capacitors are discharged safely

Verify no live electrical components and wiring are exposed

Check for continuous electrical ground

Is there any fault that could compromise safety?

Ensure no electrical supply is connected if a fault exists

Remove unit to inspect dirt build-up on the inside of the coil and basepan

Check for dirt and algae build-up

Is the coil clogged with dirt and dust?

Was the coil professionally cleaned?

Regularly clean basepan and outdoor coil

Additional notes or observations

Inspect the unit by dealer or servicer

Is the unit operated in a dusty climate?

Remove the unit from the sleeve

Turn off the power supply to the unit and unplug the power cord from the socket.

Locate the fresh air vent behind the front cover and on the backside of the partition panel on the left side of the air discharge area.

Carefully pull out the unit from the sleeve to access the fresh air filter.

Use a screwdriver to remove the Phillip screw to detach the optional fresh air filter.

Choose the cleaning method for the filter
