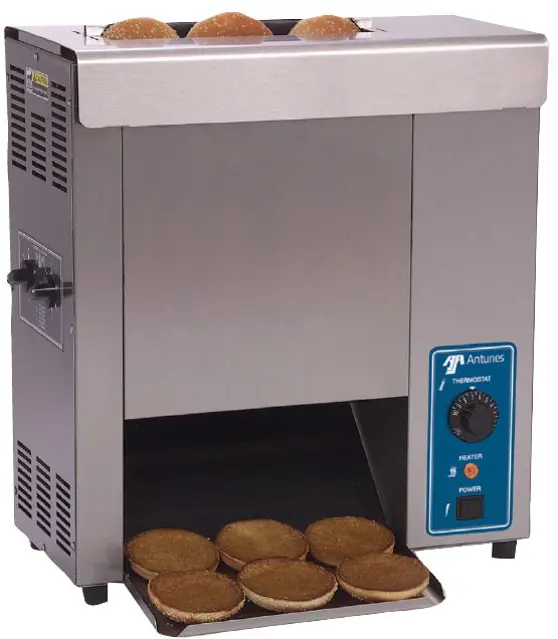

Antunes Vertical Contact Toaster VCT-25 9200637

Turn the power off and unplug the power cord.

Allow the unit to cool down for 30 minutes.

Cleaning the Release Sheet and Belt Wraps

Clean the Release Sheet and Belt Wraps while they are warm.

Remove the following components

Wash the Butter Wheel, Pan, and Heat Shield in a sink.

Turn the power off and unplug the power cord.

Remove the following components

Set the Bun Thickness Compression Knobs to 6 & 6.

Pull the Belt Wrap Pin out of the zipper.

Release Sheet Removal and Preparation

Remove and discard the Release Sheet

Lay a new Release Sheet on a clean, dry surface

Fold the Release Sheet in half lengthwise and gently crease it at the fold using only your fingers

Install the Release Sheet as per the Daily Cleaning procedure

Push down on retaining tab of the tensioner

Slide the tensioner out of the guide plate while keeping pressure on the retaining tab

Slide the new tensioner into the retainer plate

Is the new tensioner securely in place?

Check for any unusual noises after replacement

Measuring the Roller Tensioners

Measure the Roller Tensioner on both inner Conveyor Covers using a U.S Nickel.

Enter the measured space between the inner Conveyor Cover and bottom of the Tensioner wheel (in inches).

Is the space 13/16” (2.1 cm) or the height of a U.S. Nickel?

Adjust or replace any damaged Roller Tensioners as recommended.
