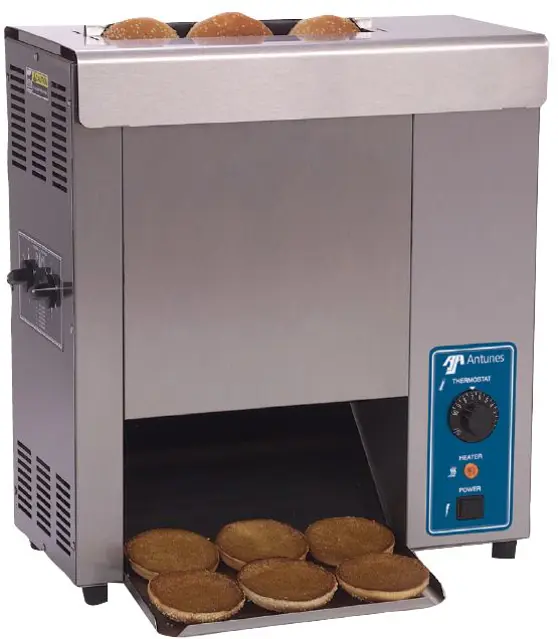

Antunes Vertical Contact Toaster VCT-25 9200625

Turn the power off, unplug the power cord, and allow the unit to cool

Remove the Butter Wheel, Pan, and Heat Shield and set the Compression Control Knobs to 6 & 6

Open both Conveyor Covers and pull the Belt Wrap Pin out of the zipper

Remove and discard the old Belt Wrap(s)

Disconnect the Conveyor Belt Chain by squeezing any two links together and unhooking both ends of one link

Place the replacement Conveyor Belt Chain on the top sprockets with hook ends down

Wrap the Conveyor Belt Chain around the top and lower sprockets and connect by hooking both ends together

Ensure the Conveyor Belt Chain is installed between the Upper Support Rod and the Lower Support Rod

Release Sheet Removal and Preparation

Remove and discard the Release Sheet

Lay a new Release Sheet on a clean, dry surface

Fold the Release Sheet in half lengthwise and gently crease it at the fold using only your fingers

Install the Release Sheet as per Daily Cleaning procedure

Push down on retaining tab of the tensioner

Slide the tensioner out of the guide plate while keeping pressure on the retaining tab

Slide the new tensioner into the retainer plate

Is the new tensioner securely in place?

Was the area cleaned after replacement?

Measuring the Roller Tensioners

Measure the Roller Tensioner on both inner Conveyor Covers using a U.S Nickel.

Enter the measured space between the inner Conveyor Cover and bottom of the Tensioner wheel in inches.

Is the measured space within the acceptable range of 13/16” (2.1 cm)?

Adjust or replace any damaged Roller Tensioners as recommended.

Turn the power off and unplug the power cord.

Allow the unit to cool down for 30 minutes.

Cleaning the Release Sheet and Belt Wraps

Clean the Release Sheet and Belt Wraps while they are warm.

Remove the following components
