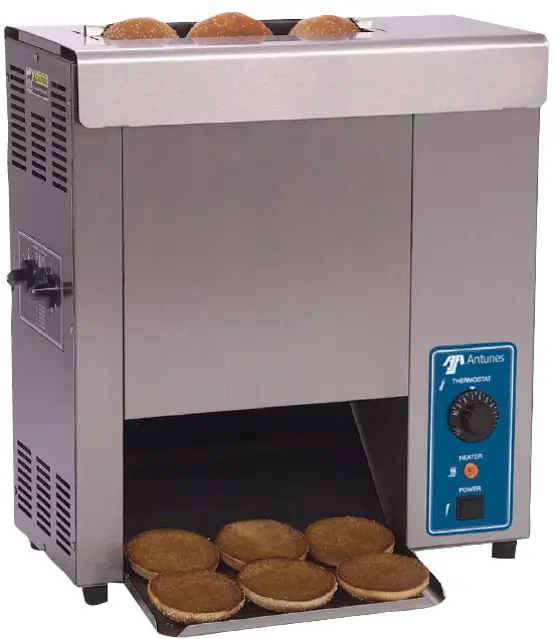

Antunes Vertical Contact Toaster VCT-25 9200629

Remove and discard the Release Sheet

Lay a new Release Sheet on a clean, dry surface

Fold the Release Sheet in half lengthwise and gently crease it at the fold using only your fingers

Install the Release Sheet as after Daily Cleaning

Turn the power off and unplug the power cord.

Allow the unit to cool down for 30 minutes.

Wash the Butter Wheel, Pan, and Heat Shield in a sink.

Wipe components with a damp sanitized towel and allow them to air dry.

Turn the unit off, unplug the power cord, and allow the unit to cool.

Remove the Bun Feeder, Butter Wheel, Pan, and Heat Shield and set the Bun Thickness Compression Knobs to 6 & 6.

Open both Conveyor Covers and pull the Belt Wrap Pin out of the zipper.

Locate the approximate center-point of the Conveyor Chain.

Pull the Conveyor Chain away from the edge of the toaster.

Stand a U.S. Dime on end between the frame and the chain.

Ensure availability of Loctite (Blue & Red) for gear motor installation.

Remove the drive motor and drive motor bracket.

Discard the 8-32 x 5/16” mounting bracket screws.

Remove the motor sprocket using a hex wrench.

Push down on retaining tab of the tensioner

Slide the tensioner out of the guide plate while keeping pressure on the retaining tab

Slide the new tensioner into the retainer plate

Is the new tensioner securely in place?

Describe any issues encountered during replacement
