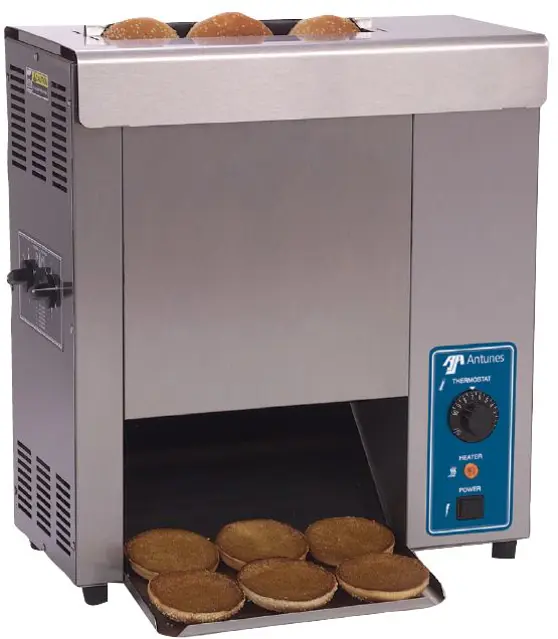

Antunes Vertical Contact Toaster VCT-25 9200621

Push down on retaining tab of the tensioner

Slide the tensioner out of the guide plate while keeping pressure on the retaining tab

Slide the new tensioner into the retainer plate

Is the new tensioner securely in place?

Describe any issues encountered during replacement

Turn the power off and unplug the power cord.

Remove the following components

Set the Bun Thickness Compression Knobs to 6 & 6.

Pull the Belt Wrap Pin out of the zipper.

Release Sheet Removal and Preparation

Remove and discard the Release Sheet

Lay a new Release Sheet on a clean, dry surface

Fold the Release Sheet in half lengthwise and gently crease it at the fold using only your fingers

Install the Release Sheet as after Daily Cleaning

Turn the unit off and unplug the power cord

Remove the Bun Feeder, Butter Wheel, Pan, and Heat Shield

Set the Bun Thickness Compression Knobs to 6 & 6

Conveyor Belt Chain Measurement

Pull the Belt Wrap Pin out of the zipper

Ensure availability of Loctite (Blue & Red) for gear motor installation.

Remove the drive motor and drive motor bracket.

Discard the 8-32 x 5/16” mounting bracket screws.

Sprocket and Bracket Disassembly

Remove the motor sprocket using a hex wrench.
