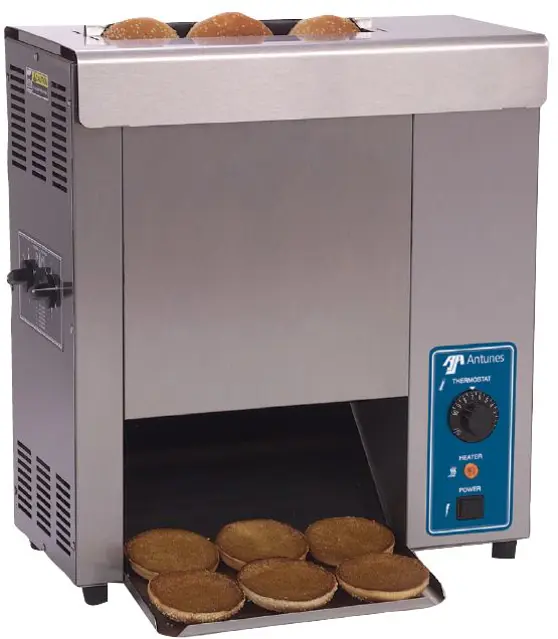

Antunes Vertical Contact Toaster VCT-50 9200600

Turn the power off and unplug the power cord.

Remove the following components

Set the Bun Thickness Compression Knobs to 6 & 6.

Pull the Belt Wrap Pin out of the zipper.

Turn the power off and unplug the power cord.

Allow the unit to cool down for 30 minutes before performing any service or maintenance.

Cleaning the Release Sheet and Belt Wraps

Clean the Release Sheet and Belt Wraps while they are warm.

Remove the following components (if equipped):

Ensure availability of Loctite (Blue & Red) for gear motor installation.

Remove the drive motor and drive motor bracket.

Discard the 8-32 x 5/16” mounting bracket screws.

Sprocket and Bracket Disassembly

Remove the motor sprocket using a hex wrench.

Release Sheet Removal and Preparation

Remove and discard the Release Sheet

Lay a new Release Sheet on a clean, dry surface

Fold the Release Sheet in half lengthwise and gently crease it at the fold using only your fingers

Install the Release Sheet as after Daily Cleaning

Turn the unit off and unplug the power cord

Remove the following components

Set the Bun Thickness Compression Knobs to 6 & 6

Conveyor Belt Chain Measurement

Pull the Belt Wrap Pin out of the zipper
