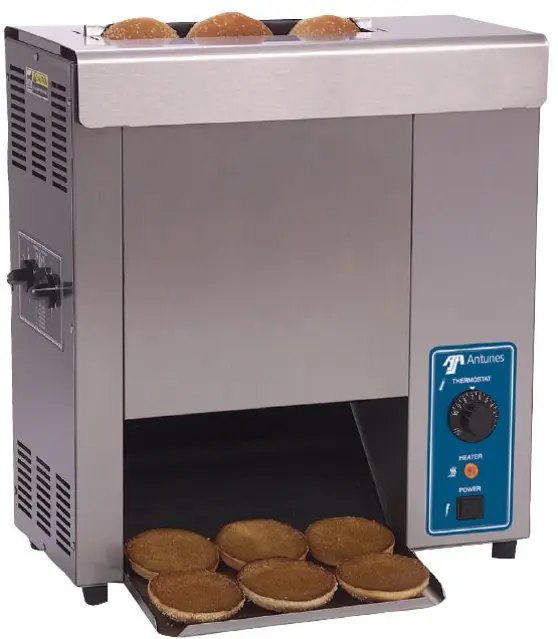

Antunes Vertical Contact Toaster VCT-50 9200616

Turn the power off and unplug the power cord.

Allow the unit to cool down for 30 minutes.

Wash the Butter Wheel, Pan, and Heat Shield in a sink.

Wipe components with a damp sanitized towel and allow them to air dry.

Remove Components and Set Knobs

Remove the following components

Set the Bun Thickness Compression Knobs to 6 & 6

Access and Measure Conveyor Belt Chains

Ensure availability of Loctite (Blue & Red) for gear motor installation.

Remove the drive motor and drive motor bracket.

Discard the 8-32 x 5/16” mounting bracket screws.

Remove the motor sprocket using a hex wrench.

Measuring the Roller Tensioners

Measure the Roller Tensioner on both inner Conveyor Covers using a U.S Nickel.

Enter the measured space between the inner Conveyor Cover and bottom of the Tensioner wheel in inches.

Is the measured space within the acceptable range of 13/16” (2.1 cm)?

Adjust or replace any damaged Roller Tensioners as recommended.

Turn the power off, unplug the power cord, and allow the unit to cool

Remove the Butter Wheel, Pan, and Heat Shield and set the Compression Control Knobs to 6 & 6

Open both Conveyor Covers and pull the Belt Wrap Pin out of the zipper

Remove and discard the old Belt Wrap(s)

Disconnect the Conveyor Belt Chain by squeezing any two links together and unhooking both ends of one link

Place the replacement Conveyor Belt Chain on the top sprockets with hook ends down

Wrap the Conveyor Belt Chain around the top and lower sprockets and connect by hooking both ends together

Ensure the Conveyor Belt Chain is installed between the Upper Support Rod and the Lower Support Rod
