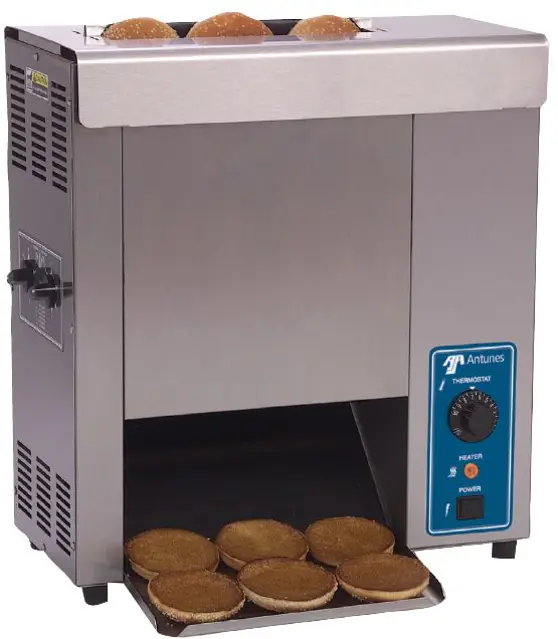

Antunes Vertical Contact Toaster VCT-50 9200602

Turn the unit off and unplug the power cord.

Remove the following components

Set the Bun Thickness Compression Knobs to 6 & 6.

Conveyor Belt Chain Measurement

Pull the Belt Wrap Pin out of the zipper.

Turn the power off and unplug the power cord.

Set the Bun Thickness Compression Knobs to 6 & 6.

Turn the power off, unplug the power cord, and allow the unit to cool

Remove the Butter Wheel, Pan, and Heat Shield and set the Compression Control Knobs to 6 & 6

Open both Conveyor Covers and pull the Belt Wrap Pin out of the zipper

Remove and discard the old Belt Wrap(s)

Disconnect the Conveyor Belt Chain by squeezing any two links together and unhooking both ends of one link

Place the replacement Conveyor Belt Chain on the top sprockets with hook ends down

Wrap the Conveyor Belt Chain around the top and lower sprockets and connect by hooking both ends together

Ensure the Conveyor Belt Chain is installed between the Upper Support Rod and the Lower Support Rod

Ensure availability of Loctite (Blue & Red) for gear motor installation.

Remove the drive motor and drive motor bracket.

Discard the 8-32 x 5/16” mounting bracket screws.

Remove the motor sprocket using a hex wrench.

Remove and discard the Release Sheet

Lay a new Release Sheet on a clean, dry surface

Fold the Release Sheet in half lengthwise and gently crease it at the fold using only your fingers

Install the Release Sheet as per Daily Cleaning procedure
