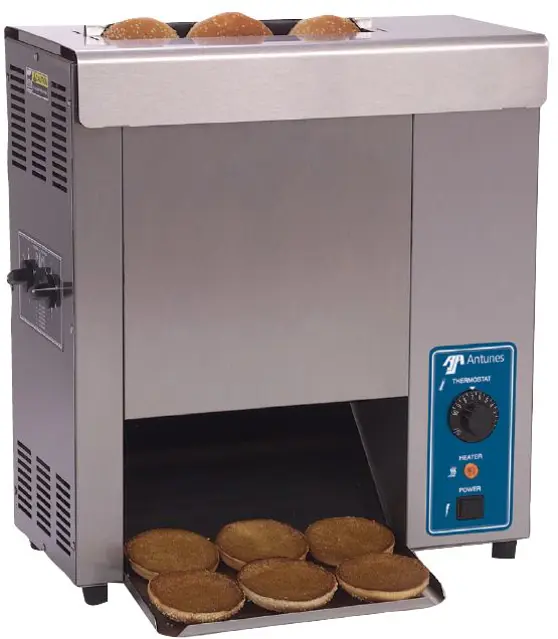

Antunes Vertical Contact Toaster VCT-50 9200614
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Antunes Vertical Contact Toaster VCT-50 9200614
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Antunes Vertical Contact Toaster VCT-50 9200614
Create an account to install this asset package.
Maintenance Plans for Antunes Vertical Contact Toaster Model VCT-50 9200614
Integrate maintenance plans directly into your work orders in MaintainX.
Conveyor Belt Chains Replacement
Preparation
Turn the power off
Unplug the power cord
Allow the unit to cool
Disassembly
Remove the following components
Set the Compression Control Knobs to 6 & 6
Old Belt Wrap Removal
Open both Conveyor Covers
3 Monthly Belt Wraps Replacement
Preparation
Turn the power off and unplug the power cord.
Allow the unit to cool.
Disassembly
Remove the following components
Set the Bun Thickness Compression Knobs to 6 & 6.
Belt Wrap Removal
Open both Conveyor Covers.
Pull the Belt Wrap Pin out of the zipper.
4 Weekly Release Sheet Replacement
Release Sheet Removal
Remove and discard the Release Sheet
Preparation of New Release Sheet
Lay a new Release Sheet on a clean, dry surface
Fold the Release Sheet in half lengthwise and gently crease it at the fold using only your fingers
Installation of New Release Sheet
Install the Release Sheet as per the Daily Cleaning procedure
3 Monthly Roller Tensioners Check
Measuring the Roller Tensioners
Measure the Roller Tensioner on both inner Conveyor Covers using a U.S Nickel
Is the space between the inner Conveyor Cover and bottom of the Tensioner wheel 13/16” (2.1 cm)?
Adjust or replace any damaged Roller Tensioners as recommended
1 Daily Toaster Cleaning
Safety Precautions
Turn the power off and unplug the power cord.
Allow the unit to cool down for 30 minutes.
Cleaning the Release Sheet and Belt Wraps
Clean the Release Sheet and Belt Wraps while they are warm.
Removing Components
Put on heat-resistant gloves.
Remove the following components
Washing Components
Parts for Antunes Vertical Contact Toaster VCT-50 9200614
Access the parts list for your equipment in MaintainX.
Power Cord/Plug, NEMA 6-20P
0700452
Thermostat, 530°F
4030235
Drive Sprocket
2150109
Drive Motor Kit, 120V (Incl. #58)
400K150
Drive Motor Kit, 230V (Incl. #58)
400K151
Power Cord/Plug, NEMA 6-20P
0700452
Thermostat, 530°F
4030235
Drive Sprocket
2150109
Drive Motor Kit, 120V (Incl. #58)
400K150
Drive Motor Kit, 230V (Incl. #58)
400K151
Power Cord/Plug, NEMA 6-20P
0700452
Thermostat, 530°F
4030235
Drive Sprocket
2150109
Drive Motor Kit, 120V (Incl. #58)
400K150
Drive Motor Kit, 230V (Incl. #58)
400K151
