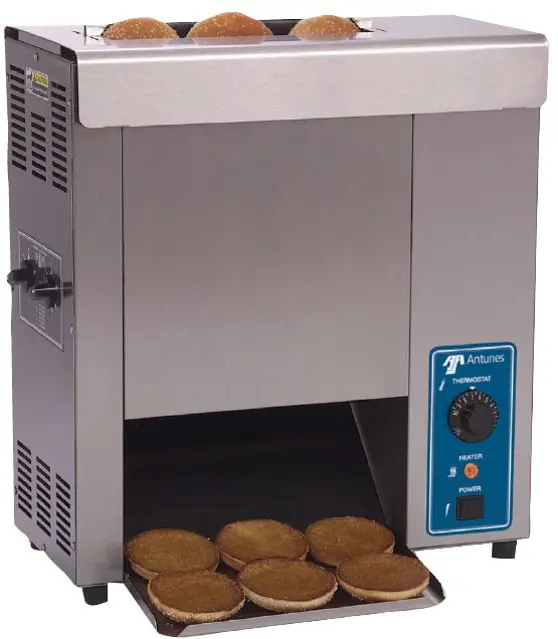

Antunes Vertical Contact Toaster VCT-50 9200606

Measuring the Roller Tensioners

Measure the Roller Tensioner on both inner Conveyor Covers using a U.S Nickel.

Record the space between the inner Conveyor Cover and bottom of the Tensioner wheel in inches.

Is the space between the inner Conveyor Cover and bottom of the Tensioner wheel 13/16” (2.1 cm)?

Adjust or replace any damaged Roller Tensioners as recommended.

Ensure availability of Loctite (Blue & Red) for gear motor installation.

Remove the drive motor and drive motor bracket.

Discard the 8-32 x 5/16” mounting bracket screws.

Sprocket and Bracket Disassembly

Remove the motor sprocket using a hex wrench.

Turn the power off and unplug the power cord.

Allow the unit to cool down for 30 minutes.

Cleaning the Release Sheet and Belt Wraps

Clean the Release Sheet and Belt Wraps while they are warm.

Remove the following components

Turn the power off and unplug the power cord.

Set the Bun Thickness Compression Knobs to 6 & 6.

Remove and discard the Release Sheet

Preparation of New Release Sheet

Lay a new Release Sheet on a clean, dry surface

Fold the Release Sheet in half lengthwise and gently crease it at the fold using only your fingers

Installation of New Release Sheet

Install the Release Sheet as after Daily Cleaning
