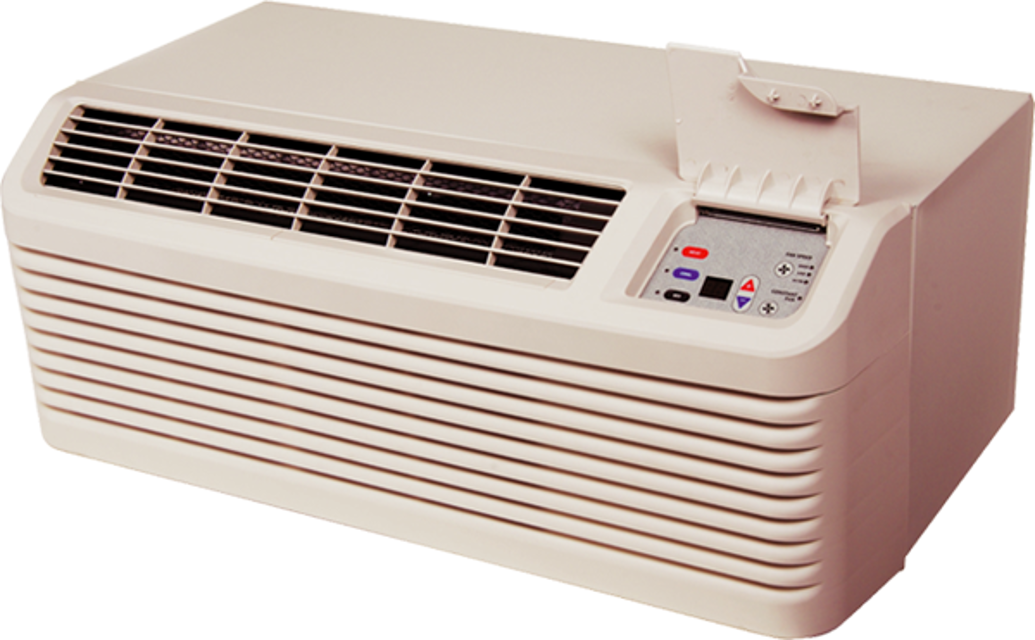

Amana Heat Pumps PMH154

Need answers fast?
Explore the manual using AI.

Amana Heat Pumps PMH154
Amana Heat Pumps PMH154

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Amana Heat Pumps PMH154

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Amana Heat Pumps PMH154

Amana Heat Pumps PMH154

Create an account to install this asset package.

Maintenance Plans for Amana Heat Pumps Model PMH154

Integrate maintenance plans directly into your work orders in MaintainX.

Outdoor Maintenance

Check mark

Outdoor Coil Maintenance

Check mark

Remove the chassis from the wall sleeve

Check mark

Capture the refrigerant from the system

Check mark

Debraze the inlet and discharge tubing from the outdoor coil

Check mark

Remove all screws from the sides of the outdoor coil securing the shroud to the coil

Check mark

Press the tabs on the right side of the shroud to separate the shroud from the outdoor coil

Check mark

For 'E-K' models, separate the four-piece condenser shroud (top, sides, and shroud)

Check mark

Remove the two screws securing the outdoor coil to the base pan

Check mark

Carefully lift the outdoor coil over the basepan lip

Run this procedureArrow right

Escutcheon, Control Board And Control Panel Removal

Check mark

Front Cover Removal

Check mark

Remove front cover

Check mark

Control Board Cover Removal

Check mark

Remove the two mounting screws from the control board cover

Check mark

Tilt the control panel out

Check mark

Disconnect ribbon connector from control board

Check mark

Control Board Disconnection

Check mark

Disconnect all wiring to the control board

Check mark

Label the wires for proper reassembly

Run this procedureArrow right

Cooling Performance Check

Check mark

Temperature Recording

Check mark

Record dry bulb temperature of return air at conditioner (Step A)

Check mark

Record dry bulb temperature of air leaving conditioner (Step B)

Check mark

Ensure dry bulb thermometer temperature on sling psychrometer is within ±1°F of return air thermometer reading (Step C)

Check mark

Record wet bulb temperature on sling psychrometer

Check mark

Temperature Difference Calculation

Check mark

Calculate temperature difference by subtracting Step B from Step A

Check mark

Use Cooling Range Chart to determine cooling range based on calculated temperature difference

Check mark

Example Verification

Run this procedureArrow right

Power Cord Maintenance

Check mark

Front Panel and Control Knobs Removal

Check mark

Remove the unit front by tilting the bottom of the front outward and then lift the front straight up

Check mark

Remove the control knobs on the control panel cover by pulling upward on the knobs

Check mark

Remove the escutcheon

Check mark

Control Panel Cover Removal

Check mark

Remove the control panel cover by removing the two screws holding the control panel cover

Check mark

Tilt the control panel forward to gain access to the wires

Check mark

Power Cord Disconnection

Check mark

Remove the power cord clamp located near the bottom right of the chassis

Run this procedureArrow right

Capacitor Check

Check mark

Disassembly

Check mark

Remove front cover

Check mark

Remove the two mounting screws from the control board cover

Check mark

Tilt the control panel out and disconnect ribbon connector from control board

Check mark

Capacitor Disconnection

Check mark

Disconnect all wiring to the capacitor

Check mark

Label the wires for proper reassembly

Check mark

Capacitor Removal

Check mark

Remove the screw securing the capacitor mounting clamp to the center partition

Run this procedureArrow right
