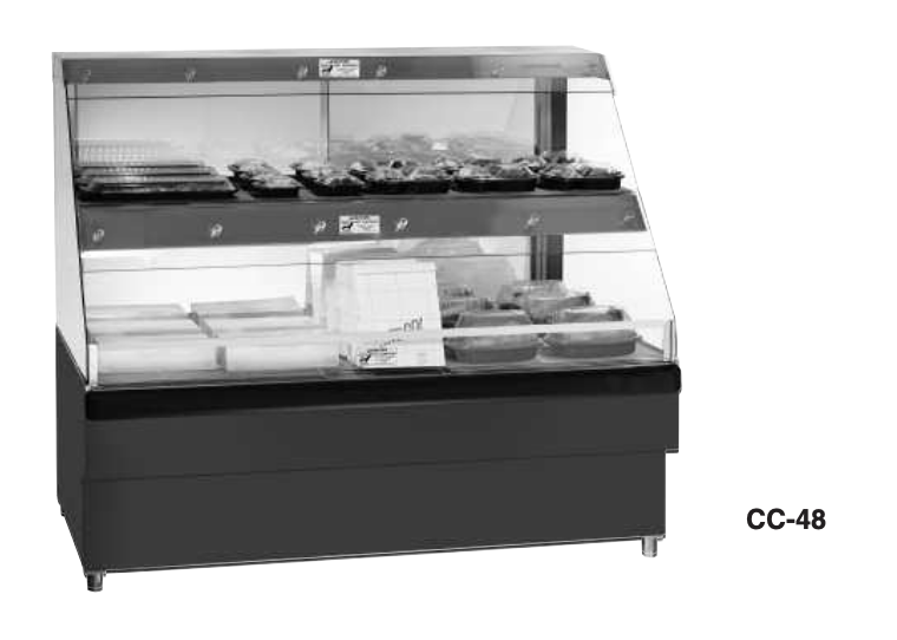

Alto-Shaam Two-Tier Self Service Display CC-48

Create an account to install this asset package.

Maintenance Plans for Alto-Shaam Two-Tier Self Service Display Model CC-48

Integrate maintenance plans directly into your work orders in MaintainX.

1 Daily Stainless Steel Cleaning

PROTECTING STAINLESS STEEL SURFACES

Check for any corrosive or inappropriate chemicals on the surface

Check for any abrasive pads, steel wool, or metal implements on the surface

Check for any water or acidic foods spilled on the surface

CLEANING AGENTS

Check if cleaning agents are non-abrasive and designed for use on stainless steel surfaces

Check if cleaning agents are chloride-free compounds and do not contain quaternary salts

Check if hydrochloric acid (muriatic acid) is not used on stainless steel surfaces

Check if the cleaning agent is used at the manufacturer's recommended strength

Run this procedure

1 Monthly Service Display Check

DANGER: DISCONNECT UNIT FROM POWER SOURCE BEFORE CLEANING OR SERVICING.

DANGER: AT NO TIME SHOULD THE INTERIOR OR EXTERIOR BE STEAM CLEANED, HOSED DOWN, OR FLOODED WITH WATER OR LIQUID SOLUTION OF ANY KIND. DO NOT USE WATER JET TO CLEAN. SEVERE DAMAGE OR ELECTRICAL HAZARD COULD RESULT. WARRANTY BECOMES VOID IF APPLIANCE IS FLOODED.

Check the case and related cabinets for physical damage

Check for loose screws

Are the controls properly functioning?

If controls are not properly functioning, refer to the Trouble Shooting Guide located in this manual or call an authorized service technician.

Sign off on the monthly service display check

Run this procedure

1 Daily Service Display Cleaning

EQUIPMENT CARE

Under normal circumstances, this appliance should provide you with long and trouble free service. There is no preventative maintenance required, however, the following Equipment Care Guide will maximize the potential life and trouble free operation of this appliance.

The cleanliness and appearance of this equipment will contribute considerably to operating efficiency and savory, appetizing food. Good equipment that is kept clean works better and lasts longer.

CLEAN THE PROBES DAILY

If the display case is supplied with probes, remove all food soil from probes. Wipe entire probe and cable assembly with warm detergent solution and a clean cloth. Remove detergent by wiping each probe and cable with clean rinse water and a cloth.

Wipe probes with disposable alcohol pad or sanitizing solution recommended for food contact surfaces. Allow probe and cable to air dry in probe holding bracket.

CLEAN DAILY

A. Turn lights and adjustable thermostat(s) to the "OFF" position, and disconnect unit from power source.

B. Remove, cover or wrap, and store unused products under refrigeration.

Run this procedure
