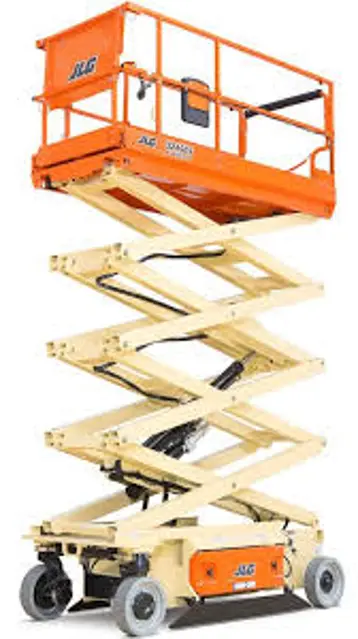

JLG Scissor Lift 3246ES

Before using each day; or whenever there’s an Operator change Pre-Start Inspection must be done

Cleanliness – Check all surfaces for leakage (oil, fuel, or battery fluid) or foreign objects.

Structure – Inspect the machine structure for dents, damage, weld or parent metal cracks or other discrepancies.

Decals and Placards – Check all for cleanliness and legibility. Make sure none of the decals and placards are missing.

Operation and Safety Manuals – Make sure a copy of the Operation and Safety Manual is enclosed in the weather resistant storage container.

Walk-Around Inspection – Refer to Figure 2-1.

Platform Control Console - Placard secure and legible, control lever and switches return to neutral, control lever lock and emergency stop switch function properly, manual in storage box.

Steer Cylinder - See Inspection Note.

Spindle, Tie Rod, Drive Motor and Steer Linkage (left front) - See Inspection Note.

Warning: TO AVOID POSSIBLE INJURY, BE SURE MACHINE POWER IS “OFF” DURING WALK-AROUND INSPECTION.

Notice: DO NOT OVERLOOK VISUAL INSPECTION OF CHASSIS UNDERSIDE. CHECKING THIS AREA OFTEN RESULTS IN DISCOVERY OF CONDITIONS WHICH COULD CAUSE EXTENSIVE MACHINE DAMAGE.

Cleanliness – Check all surfaces for leakage (oil, fuel, or battery fluid) or foreign objects.

Structure – Inspect the machine structure for dents, damage, weld or parent metal cracks or other discrepancies.

Decals and Placards – Check all for cleanliness and legibility. Make sure none of the decals and placards are missing.

Operation and Safety Manuals – Make sure a copy of the Operation and Safety Manual is enclosed in the weather resistant storage container.

Platform Control Console - Placard secure and legible, control lever and switches return to neutral, control lever lock and emergency stop switch function properly, manual in storage box.

Steer Cylinder - See Inspection Note.

Spindle, Tie Rod, Drive Motor and Steer Linkage (left front) - See Inspection Note.

Inspect tires periodically for wear or damage. Tires with worn edges or distorted profiles require replacement. Tires with significant damage in the tread area or side wall, require immediate evaluation before placing the machine into service.

Replacement wheels must have the same diameter and profile as the original. Replacement tires must be the same size and rating as the tire being replaced.

It is extremely important to apply and maintain proper wheel mounting torque.

WHEEL NUTS MUST BE INSTALLED AND MAINTAINED AT THE PROPER TORQUE TO PREVENT LOOSE WHEELS, BROKEN STUDS, AND POSSIBLE SEPARATION OF WHEEL FROM THE AXLE.

BE SURE TO USE ONLY THE NUTS MATCHED TO THE CONE ANGLE OF THE WHEEL.

Tighten the lug nuts to the proper torque to prevent wheels from coming loose. Use a torque wrench to tighten the fasteners.

If you do not have a torque wrench, tighten the fasteners with a lug wrench, then immediately have a service garage or dealer tighten the lug nuts to the proper torque.

Over-tightening will result in breaking the studs or permanently deforming the mounting stud holes in the wheels.

Perform the Function Check as follows:

1. From the ground control console with no load in the platform:

a. Check that all guards protecting the function control switches and controllers are in place.

b. Operate all functions and check all limiting and cutout switches.

d. Ensure that all machine functions are disabled when the Emergency Stop Button is depressed.

2. From the platform control console:

a. Ensure that the control console is firmly secured in the proper location.

b. Check that all guards protecting the function control switches and controllers are in place

Safety prop resting on designated rest

Safety prop stored back in stowed position

Scissor lift on a flat and level surface

Safety prop swung out of stowed position

Fill plug on the right side of the tank accessible
