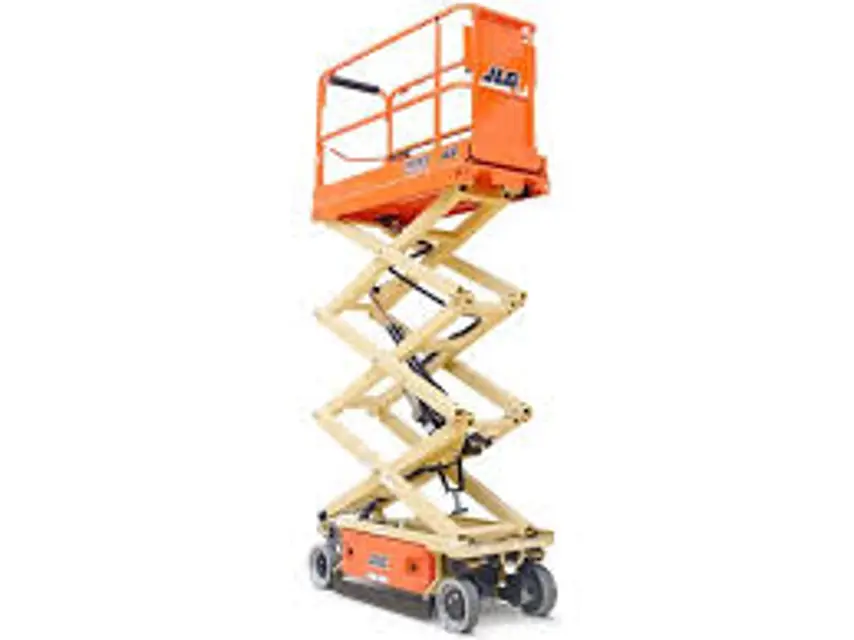

JLG Scissor Lift 1930ES

Before using each day; or whenever there’s an Operator change Pre-Start Inspection must be done

Cleanliness – Check all surfaces for leakage (oil, fuel, or battery fluid) or foreign objects.

Structure – Inspect the machine structure for dents, damage, weld or parent metal cracks or other discrepancies.

Decals and Placards – Check all for cleanliness and legibility. Make sure none of the decals and placards are missing.

Operation and Safety Manuals – Make sure a copy of the Operation and Safety Manual is enclosed in the weather resistant storage container.

Walk-Around Inspection – Refer to Figure 2-1.

Platform Control Console - Placard secure and legible, control lever and switches return to neutral, control lever lock and emergency stop switch function properly, manual in storage box.

Steer Cylinder - See Inspection Note.

Spindle, Tie Rod, Drive Motor and Steer Linkage (left front) - See Inspection Note.

THE SAFETY PROP MUST BE USED WHENEVER MAINTENANCE PERFORMED ON THE MACHINE REQUIRES THE SCISSOR ARMS TO BE RAISED AND ONLY WITH NO LOAD IN THE PLATFORM.

To engage the safety prop, raise the platform, rotate the safety prop from it’s stowed position located on the right side of the machine.

Lower the platform until the safety prop rests on the designated safety prop rest, just above the center pin on the arm below.

To store the safety prop, raise the platform, rotate the safety prop around and restore it back to its stowed position.

• Capacity: 1930ES/2032ES/2632ES - 2 Gal. (7.6 L), 2646ES/3246ES - 3 Gal. (11.3 L)

Warning: TO AVOID POSSIBLE INJURY, BE SURE MACHINE POWER IS “OFF” DURING WALK-AROUND INSPECTION.

Notice: DO NOT OVERLOOK VISUAL INSPECTION OF CHASSIS UNDERSIDE. CHECKING THIS AREA OFTEN RESULTS IN DISCOVERY OF CONDITIONS WHICH COULD CAUSE EXTENSIVE MACHINE DAMAGE.

Cleanliness – Check all surfaces for leakage (oil, fuel, or battery fluid) or foreign objects.

Structure – Inspect the machine structure for dents, damage, weld or parent metal cracks or other discrepancies.

Decals and Placards – Check all for cleanliness and legibility. Make sure none of the decals and placards are missing.

Operation and Safety Manuals – Make sure a copy of the Operation and Safety Manual is enclosed in the weather resistant storage container.

Platform Control Console - Placard secure and legible, control lever and switches return to neutral, control lever lock and emergency stop switch function properly, manual in storage box.

Steer Cylinder - See Inspection Note.

Spindle, Tie Rod, Drive Motor and Steer Linkage (left front) - See Inspection Note.

Warning: TO AVOID POSSIBLE INJURY, BE SURE MACHINE POWER IS “OFF” DURING WALK-AROUND INSPECTION.

Notice: DO NOT OVERLOOK VISUAL INSPECTION OF CHASSIS UNDERSIDE. CHECKING THIS AREA OFTEN RESULTS IN DISCOVERY OF CONDITIONS WHICH COULD CAUSE EXTENSIVE MACHINE DAMAGE.

Cleanliness – Check all surfaces for leakage (oil, fuel, or battery fluid) or foreign objects.

Structure – Inspect the machine structure for dents, damage, weld or parent metal cracks or other discrepancies.

Decals and Placards – Check all for cleanliness and legibility. Make sure none of the decals and placards are missing.

Operation and Safety Manuals – Make sure a copy of the Operation and Safety Manual is enclosed in the weather resistant storage container.

Platform Control Console - Placard secure and legible, control lever and switches return to neutral, control lever lock and emergency stop switch function properly, manual in storage box.

Steer Cylinder - See Inspection Note.

Spindle, Tie Rod, Drive Motor and Steer Linkage (left front) - See Inspection Note.

Shut off power to all controls and ensure that all moving parts are secured from inadvertent motion prior to performing any adjustments or repairs.

Never work under an elevated platform until it has been fully lowered to the full down position, if possible, or otherwise supported and restrained from movement with appropriate safety props, blocking, or overhead supports.

DO NOT attempt to repair or tighten any hydraulic hoses or fittings while the machine is powered on or when the hydraulic system is under pressure.

Always relieve hydraulic pressure from all hydraulic circuits before loosening or removing hydraulic components.

DO NOT use your hand to check for leaks. Use a piece of cardboard or paper to search for leaks. Wear gloves to help protect hands from spraying fluid.

Ensure replacement parts or components are identical or equivalent to original parts or components.

Never attempt to move heavy parts without the aid of a mechanical device. Do not allow heavy objects to rest in an unstable position. Ensure adequate support is provided when raising components of the machine.

Use only approved non-flammable cleaning solvents.
