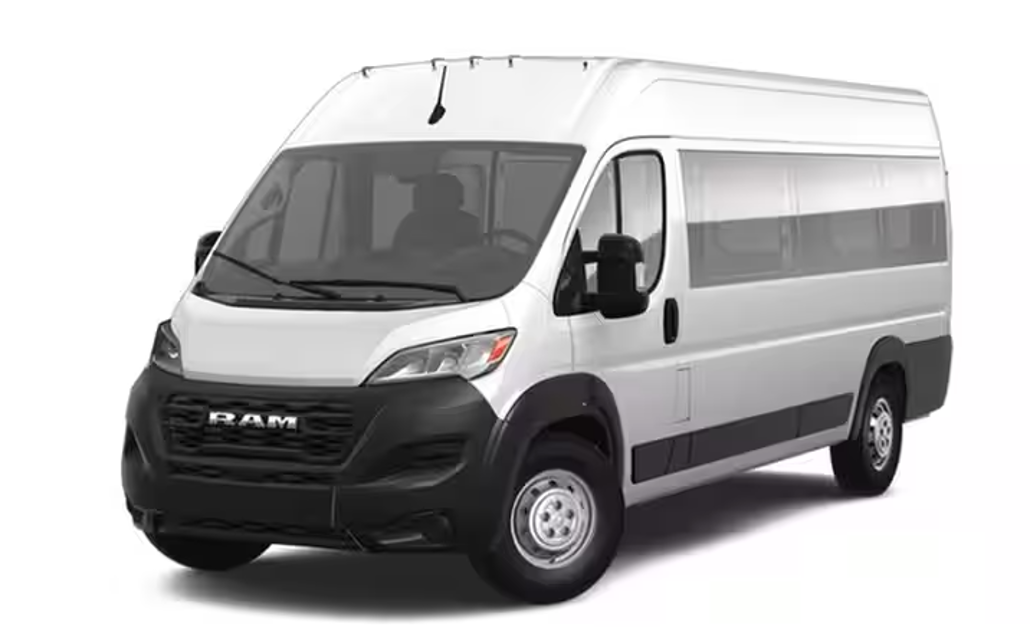

RAM Car Promaster 3500

Warning: Do not use abrasive cleaning components, solvents, steel wool or other aggressive material to clean the lenses.

Are the headlights and fog lights plastic?

Is there any road dirt on the lenses?

If there is road dirt, wash with a mild soap solution followed by rinsing.

Did the dirt come off after washing?

If the dirt did not come off, repeat the washing process.

Sign off on the headlight cleaning process.

Warning: Use only the manufacturer recommended brake fluid. Avoid contamination from foreign matter or moisture.

Brake System Warning Light indicates system failure?

Fluid level in the brake master cylinder

If fluid level is low, add fluid to bring level within the designated marks on the side of the reservoir of the brake master cylinder.

Clean the top of the master cylinder area before removing cap.

Warning: Overfilling the brake fluid reservoir can result in spilling brake fluid on hot engine parts, causing the brake fluid to catch fire.

Warning: Do not allow petroleum-based fluid to contaminate the brake fluid. Brake seal components could be damaged, causing partial or complete brake failure.

If you notice fluid leakage or transmission malfunction, visit an authorized dealer immediately to have the transmission fluid level checked.

Caution: If a transmission fluid leak occurs, visit an authorized dealer immediately. Severe transmission damage may occur.

Warning: Always use appropriate cleaning materials for the wiper blades and windshield.

Clean the rubber edges of the wiper blades and the windshield with a sponge or soft cloth and a mild nonabrasive cleaner

Use washer fluid when using the wipers to remove salt or dirt from a dry windshield

Avoid using the wiper blades to remove frost or ice from the windshield

Keep the blade rubber out of contact with petroleum products such as engine oil, gasoline, etc.

NOTE: Life expectancy of wiper blades varies depending on geographical area and frequency of use.

If chattering, marks, water lines or wet spots are present, clean the wiper blades or replace as necessary.

Sign off on the windshield wiper blades maintenance

Remove the seven (7) fasteners from the rear access cover

Remove cover to gain access to the tail lamp assembly fasteners

Remove the two (2) 17 mm tail lamp assembly fasteners

Disconnect the tail lamp harness connector

Remove tail light assembly from the vehicle

Remove the tail/stop, turn signal, backup and rear side marker bulb/socket by rotating counterclockwise

Remove the bulb and replace as needed

Reinstall bulb/socket and rotate clockwise to lock in place

Warning: Ensure the lamp is not hot before starting the procedure

Lamp above the back door or the sliding door removed and disconnected

Metal bulb access on the back of the housing opened

Bulb access closed, lamp connected and installed into place

Sign off on the cargo lamp replacement
