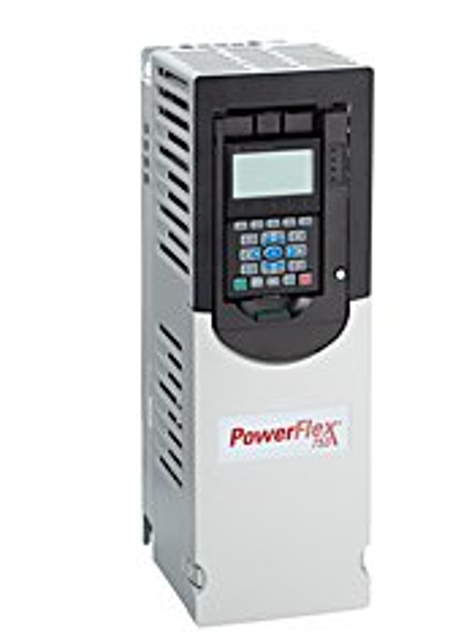

Allen Bradley AC Drive PowerFlex 700S

Door-mounted Air Filters Maintenance

Inspect door-mounted air filters for damage or excessive dirt

Is replacement of door-mounted air filters necessary?

Clean door-mounted air filters if replacement is not necessary

Replace door-mounted air filters if necessary

Roof-mounted Assembly Air Filters Maintenance

Inspect roof-mounted assembly air filters for damage or excessive dirt

Is replacement of roof-mounted assembly air filters necessary?

Clean roof-mounted assembly air filters if replacement is not necessary

Inspect Main Heatsink Cooling Fan(s)

Check if the main heatsink cooling fan(s) are operational

Clean the main heatsink cooling fan(s)

Inspect Door-mounted Cooling Fans

Verify the operation of door-mounted cooling fans

Clean the door-mounted cooling fans

Inspect Capacitor Bank Cooling Fans

Ensure the capacitor bank cooling fans are functioning properly

Clean the capacitor bank cooling fans

Replace Main Heatsink Cooling Fan(s)

Was the main heatsink cooling fan(s) replaced successfully?

Replace Door-mounted Cooling Fans

Were the door-mounted cooling fans replaced successfully?

Replace Capacitor Bank Cooling Fans

Were the capacitor bank cooling fans replaced successfully?

Replace Converter Input Fuse Stirring Fan

Was the converter input fuse stirring fan replaced successfully?

Replace Converter Gate Board Stirring Fan

Check for proper functioning and freedom from sticking or binding

Replace any broken, deformed, or badly worn parts or assemblies

Check and securely re-tighten any loose fasteners

Is lubrication specified for this product?

Lubricate per individual product instructions

Are there any Allen-Bradley® magnetic starters, contactors, or relays?

Ensure no lubrication is applied to Allen-Bradley® devices

Ensure the following before starting

Set reforming voltage to 1.35…1.45 times the rated AC system voltage

Measure the power supply current draw

Is the power supply current draw less than or equal to 500 mA?
