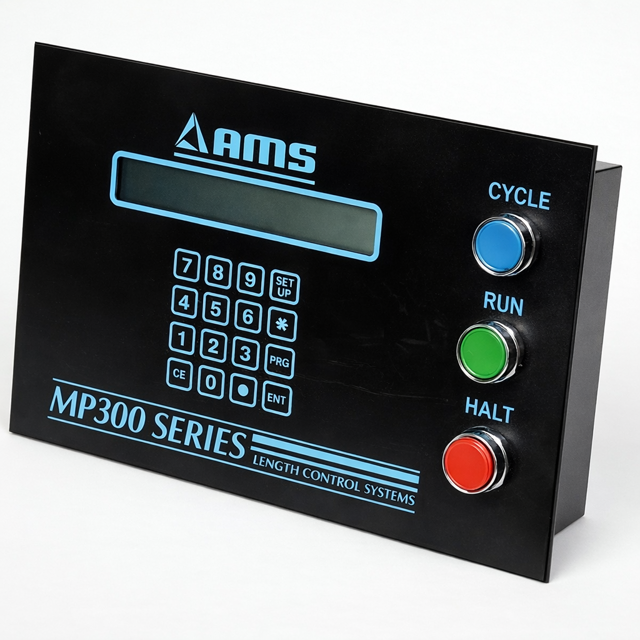

AMS Controls Open Loop Controller MP301

Run ten parts of equal lengths, 120" for example.

Enter the measured lengths of the ten parts.

Calculate the average length by adding up all ten parts and dividing by ten.

Use the formula for the new CORRECTION FACTOR using the average of the ten parts for 'actual measured length'.

Enter the calculated CORRECTION FACTOR.

Is the new CORRECTION FACTOR within acceptable limits?

Record any observations or issues encountered during testing.

Set the SHEAR REACTION time to zero

Is there a die boost on the shear die?

Disable die boost by disconnecting the wire on the output of the controller

Slow the line speed to avoid metal jamming in the shear die, if necessary

Ensure the MP300 SERIES controller is powered on

Verify the accuracy of the measuring device (steel tape or vernier caliper)

Press the SETUP key until the calibration screen appears

Enter the calibration length (default is 120 inches)

Is the calibration length longer than 4 feet?

Measurement Device Verification

Is the measuring device a steel tape?

Press SETUP until the screen in figure 3-5 appears

Select the number for 'Trim Cal'

Enter the actual measured length of the last part cut

Would you like to update the current correction factor with the new value?

Use CALIBRATE TRIM when part lengths are incorrect but consistent in error (e.g., all parts 3/16” long)

Entering Manual Calibration Mode

Press SETUP until the Manual Calibrate screen appears

Select the number for 'Manual Calibrate'

Navigating Calibration Parameters

Press ENT to move to the next parameter

Press SETUP to move back to the previous parameter

Review the values calculated by the MP300 SERIES

Override values if necessary and document changes
