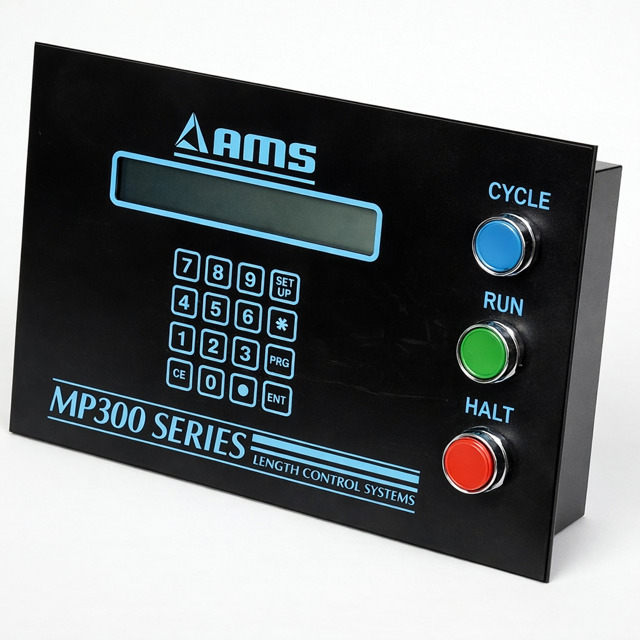

AMS Controls Open Loop Controller MP350PH

Press the SETUP key until the calibration screen appears

Enter the calibration length to be run (default is 120 inches)

Verify the accuracy of the measuring device

Press the CYCLE switch to trim the leading edge

Place the machine in AUTOMATIC mode by pressing the RUN switch

Ensure the machine is powered off before starting the procedure.

Verify that the controller is properly connected to the machine.

Deceleration Factor Mode Selection

Is the DECEL FACTOR automatically maintained by the controller?

Record the DECEL FACTOR value in In/Sec2.

Ensure the following are in place

Stopping Reaction Time Configuration

Enter the STOPPING REACTION time (seconds)

Is the STOPPING REACTION time within the acceptable range (0 to 5.000 seconds)?

Run a test cycle to verify the STOPPING REACTION time

Entering Manual Calibration Mode

Press SETUP until the Manual Calibrate screen appears

Select the number for 'Manual Calibrate'

Navigating Calibration Parameters

Press ENT to move to the next parameter

Press SETUP to move back to the previous parameter

Review the values calculated by the MP300 SERIES

Override values if necessary and document changes

Activate the shear using the CYCLE switch on the front panel.

Did the SHEAR output turn on for the SHEAR DWELL time or until the SHEAR COMPLETE input switch closed?

Adjustments made to SHEAR DWELL time or SHEAR COMPLETE switch position

Manual Press Testing (With Punching Only)

Activate the punch using the MANUAL PUNCH input.

Did the Punch output turn on for the PUNCH DWELL time or until the PUNCH COMPLETE input switch closed?

Adjustments made to PRESS DWELL time or PRESS COMPLETE switch position
