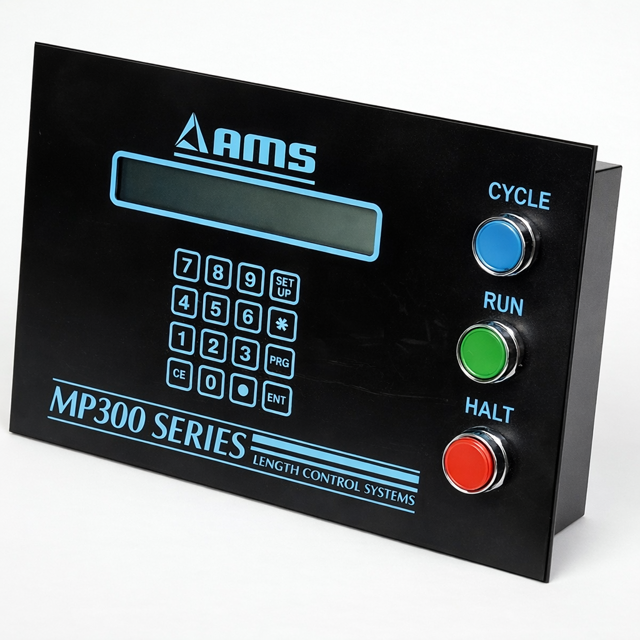

AMS Controls Open Loop Controller MP301H

Ensure the following are in place

Stopping Reaction Time Configuration

Enter the desired STOPPING REACTION time (max 5.000 seconds)

Is the STOPPING REACTION time within the acceptable range?

Run a test cycle to verify the STOPPING REACTION time

Entering Manual Calibration Mode

Press SETUP until the Manual Calibrate screen appears

Select the number for 'Manual Calibrate'

Navigating Calibration Parameters

Press ENT to move to the next parameter

Press SETUP to move back to the previous parameter

Review the values calculated by the MP300 SERIES

Override values if necessary and document changes

Set the SHEAR REACTION time to zero

Disable die boost by disconnecting the wire on the output of the controller

Slow the line speed to avoid metal jamming in the shear die

Run ten parts of equal lengths, 120" for example.

Enter the measured lengths of the ten parts.

Calculate the average length by adding up all ten parts and dividing by ten.

Use the formula for the new CORRECTION FACTOR using the average of the ten parts for 'actual measured length'.

Enter the calculated CORRECTION FACTOR.

Is the new CORRECTION FACTOR within the acceptable range?

Document any discrepancies or observations during the testing.

Sign off on the completion of the procedure.

Measure voltage at the connectors before plugging in

Is the polarity of the 24 VDC correct for panel mount version?

Measure 120 VAC from pin J to pins K and L for console models

Is there 0 VAC between pin K and pin L?

Connector Plug-in and Power Reapplication

Turn off the power before plugging in the connectors

Reapply power to the controller
