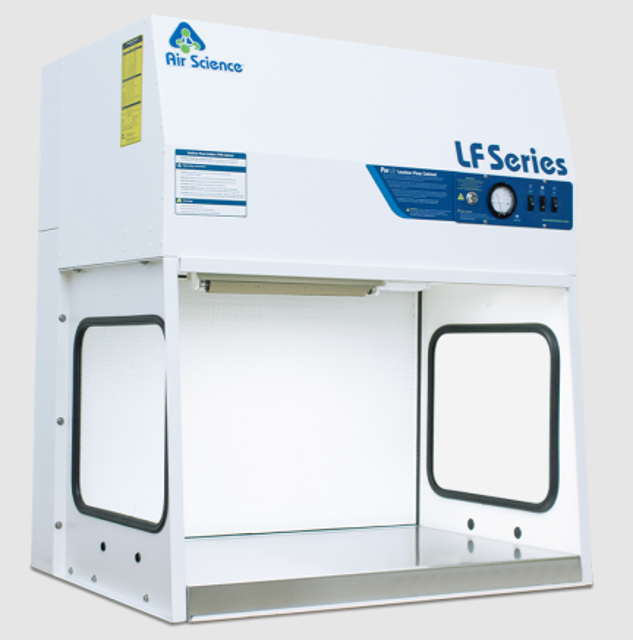

Air Science Laminar Flow Cabinet HLF-96

Ensure the following components are removed before proceeding

Disconnect electrical connections as necessary to free blower

Remove screws and lift up blower assembly from the supply plenum

Remove mounting plate from the 4 aluminum profiles

Remove blower from the mounting plate

Reconnect electrical connections

Recertification by qualified technician

Perform all semiannual activities

Adjust speed control to achieve desired velocity

Recertify the cabinet after speed is adjusted

Measure the pressure drop across HEPA/ULPA filters

Is the pressure drop within acceptable limits?

Is the fan speed within the maximum supply voltage according to the fan performance curve?

Select suitable disinfecting agents for stainless steel

Powder Coated Surfaces Cleaning

Select suitable disinfecting agents for powder coated surfaces

Spray chemicals onto a wipe or cloth before applying to surfaces

Ensure no cleaning agents are sprayed onto acrylic panels

Avoid using disinfectants containing chlorine-based substances

Ensure the following components are removed before proceeding

Disconnect electrical connections as necessary to free blower

Remove nuts clamping the blower

Carefully pull out and lift up blower

Reinstall blower by reversing the removal steps
