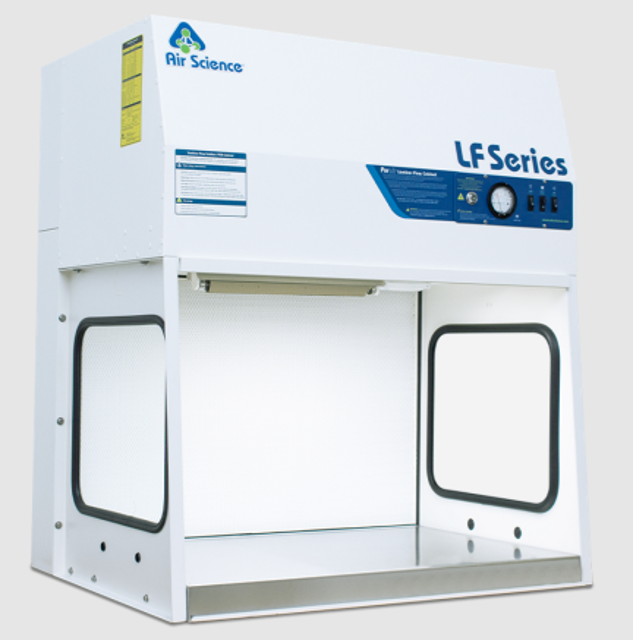

Air Science Laminar Flow Cabinet HLF-72

Recertification by qualified technician

Perform all semiannual activities

Clean all surfaces of silicon and/or adherent gasket material

Check new filter and gaskets for leaks

Remove the back cover held by screws

Remove nuts on the two sides (top and bottom) of the vertical clamps

Remove all vertical clamps along with the u-plates

Carefully remove the supply filter

Verify suitable disinfecting agents for stainless steel

Powder Coated Surfaces Cleaning

Verify suitable disinfecting agents for powder coated surfaces

Spray chemicals onto a wipe or cloth before applying to surfaces

Ensure no cleaning agents are sprayed onto acrylic panels

Avoid using disinfectants containing chlorine-based substances

Ensure the following components are removed before proceeding

Disconnect electrical connections as necessary to free blower

Remove screws and lift up blower assembly from the supply plenum

Remove the mounting plate from the 4 aluminum profiles

Remove the blower from the mounting plate

Reconnect electrical connections

Clean the exterior surfaces of the cabinet with a damp cloth

Use soap or mild detergent if necessary

Check all service fixtures for proper operation
