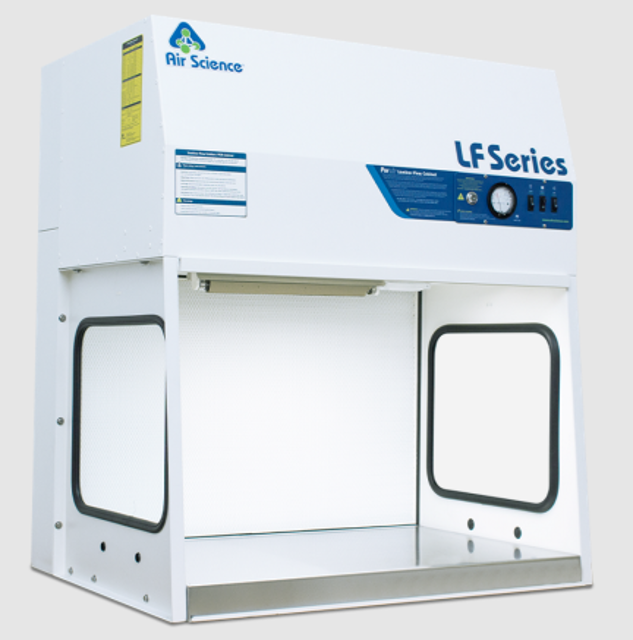

Air Science Laminar Flow Cabinet HLF-24XT

Clean the exterior surfaces of the cabinet with a damp cloth

Use soap or mild detergent if necessary

Check all service fixtures for proper operation

Clean all surfaces of silicon and/or adherent gasket material

Check filters and gaskets for leaks

Remove the perspex cover by unscrewing the screws in front and thumb screws in rear

Release bolts and remove filter clamps

Carefully remove the supply filter

Install new filter by reversing the removal steps

Ensure the following components are removed before proceeding

Disconnect electrical connections as necessary to free blower

Remove nuts clamping the blower

Carefully pull out and lift up blower

Reinstall blower by reversing the removal steps

Ensure the following components are removed before proceeding

Disconnect electrical connections as necessary to free blower

Remove screws and lift up blower assembly from the supply plenum

Remove mounting plate from the 4 aluminum profiles

Remove blower from the mounting plate

Reconnect electrical connections

Select suitable disinfecting agents for stainless steel surfaces

Select suitable disinfecting agents for powder coated surfaces

Spray chemicals onto a wipe or cloth before applying to surfaces

Ensure no cleaning agents are sprayed onto acrylic panels

Confirm no use of chlorine-based substances on steel and stainless steel surfaces
