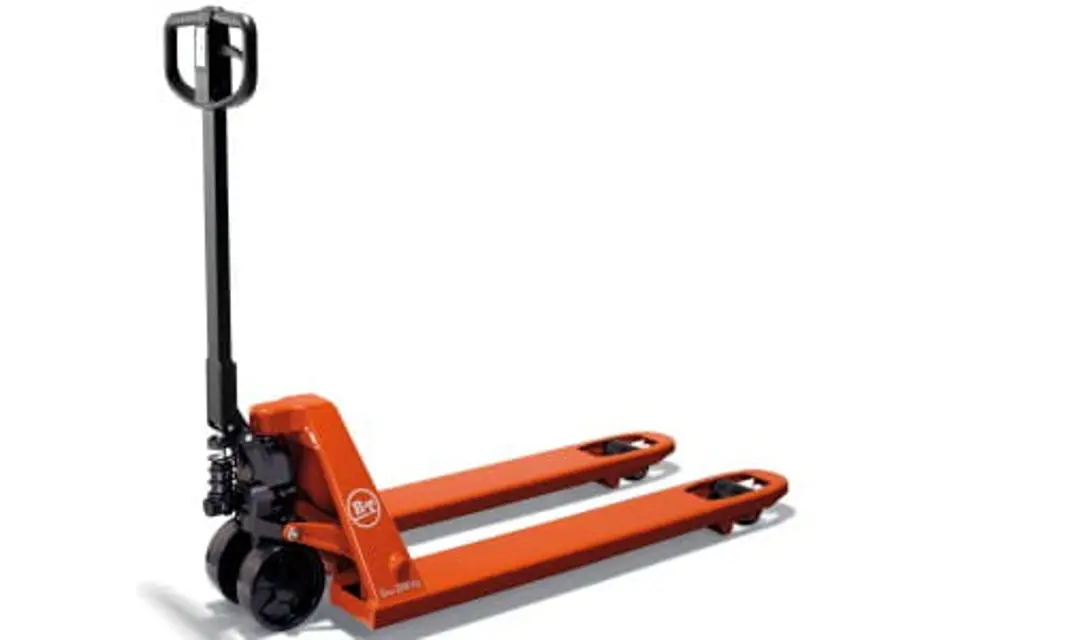

BT Industries AB Hand Pallet Truck LHM300X
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for BT Industries AB Hand Pallet Truck LHM300X
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
BT Industries AB Hand Pallet Truck LHM300X
Create an account to install this asset package.
Maintenance Plans for BT Industries AB Hand Pallet Truck Model LHM300X
Integrate maintenance plans directly into your work orders in MaintainX.
1 Yearly Pallet Truck Lubrication
Cleaning and Washing
Clean the pallet truck thoroughly
Wash the pallet truck
Jump-Start Unit Cleaning
Is there a malfunction in the jump-start unit?
Clean the jump-start unit internally on LHM230P
Lubrication
Was the pallet truck washed?
Lubricate the pallet truck as per the table
Hydraulic Oil Change
Preparation
Ensure service tool V10-16572 is available
Verify load is between 200-400 kg
Oil Change Process
Pump the load up to maximum lift height
Place the tool beside the top of the hydraulic unit to check oil level
Lay the truck on its side and press the piston to the top
Unscrew the cone valve
Top up with oil to the required level
Steering Wheel Replacement
Removal of Existing Steering Wheel
Remove the hub cap
Remove the locking ring holding the wheel in place
Remove the wheel
Installation of New Steering Wheel
Fit the new wheel
Install the locking ring
Attach the hub cap
Cable Replacement
Cable Removal
Remove the cable and its casing from the tow bar, leaving the lower section of the cable until later
Remove the spiral pin and the two shafts
Remove the bracket from the link arm
Remove the cover from the wheel
Undo the locking ring
Lift the wheel gently, allowing the four rollers to come loose from the direction adjuster
Cable Installation
Fit the new cable in the tow bar through the two upper bushings
Fork Wheel Replacement
Disassembly
Remove the spiral pin and shaft
Remove the wheel
Reassembly
Reassemble the wheel and shaft in reverse order
Post Replacement Check
Verify the wheel is securely attached
Is the wheel functioning properly after replacement?
Parts for BT Industries AB Hand Pallet Truck LHM300X
Access the parts list for your equipment in MaintainX.
BT Hydraulic Oil 32, 1 litre, ISO-VG32 Quality Level: ISO 6743-4 Category HM, DIN 51524 Part 2 Category HLP
233328-001
BT Hydraulic Oil 32, 5 litres ISO-VG32 Quality Level: ISO 6743-4 Category HM, DIN 51524 Part 2 Category HLP
233328-002
OKQ8 Rubens WB Grease
213366
Statoil 131 Hydraulic Oil, 1 litre ISO-VG27.5, Quality Level: ISO 6743-4 Category HV, DIN 51524 Part 3 Category HVLP
233916-001
Statoil 131 Hydraulic Oil, 5 litres ISO-VG27.5, Quality Level: ISO 6743-4 Category HV, DIN 51524 Part 3 Category HVLP
233916-002
BT Hydraulic Oil 32, 1 litre, ISO-VG32 Quality Level: ISO 6743-4 Category HM, DIN 51524 Part 2 Category HLP
233328-001
BT Hydraulic Oil 32, 5 litres ISO-VG32 Quality Level: ISO 6743-4 Category HM, DIN 51524 Part 2 Category HLP
233328-002
OKQ8 Rubens WB Grease
213366
Statoil 131 Hydraulic Oil, 1 litre ISO-VG27.5, Quality Level: ISO 6743-4 Category HV, DIN 51524 Part 3 Category HVLP
233916-001
Statoil 131 Hydraulic Oil, 5 litres ISO-VG27.5, Quality Level: ISO 6743-4 Category HV, DIN 51524 Part 3 Category HVLP
233916-002
BT Hydraulic Oil 32, 1 litre, ISO-VG32 Quality Level: ISO 6743-4 Category HM, DIN 51524 Part 2 Category HLP
233328-001
BT Hydraulic Oil 32, 5 litres ISO-VG32 Quality Level: ISO 6743-4 Category HM, DIN 51524 Part 2 Category HLP
233328-002
OKQ8 Rubens WB Grease
213366
Statoil 131 Hydraulic Oil, 1 litre ISO-VG27.5, Quality Level: ISO 6743-4 Category HV, DIN 51524 Part 3 Category HVLP
233916-001
Statoil 131 Hydraulic Oil, 5 litres ISO-VG27.5, Quality Level: ISO 6743-4 Category HV, DIN 51524 Part 3 Category HVLP
233916-002
