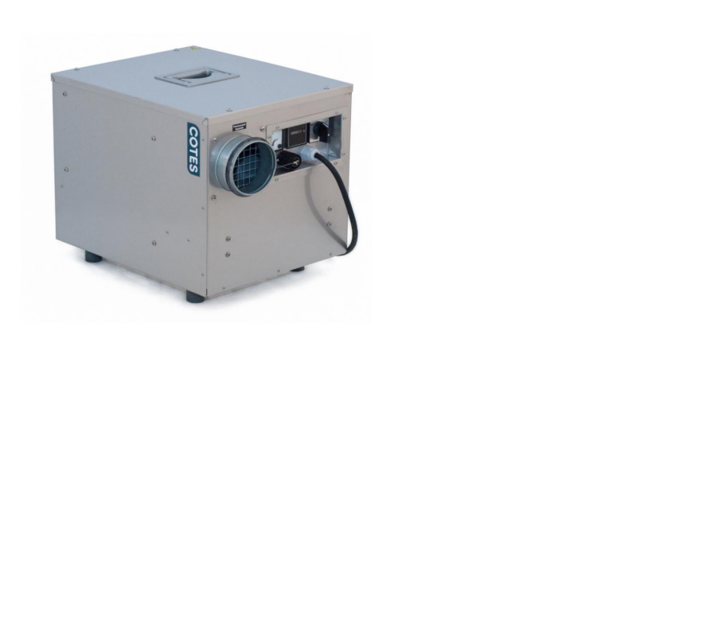

Cotes A/S Dehumidifier CR290B

Check the rotation of the rotor

Enter the power consumption of the electric heater

Is a damper installed in the dry air duct?

Enter the nominal regeneration airflow (m3/h) from table 1

Is the airflow reduced on the damper to obtain the nominal regeneration airflow?

Regeneration Air Flow Adjustment

Start with the damper in the closed position

Enter the amperemeter value (A) after opening the damper to optimal value

Is the amperemeter value optimal after 15 minutes of operation?

Adjust the damper again if necessary

Ensure only trained/authorised electricians perform work in the electrical box

Switch off the power supply at the mains switch before opening the electrical box

Do the regeneration air outlet ducts drain away from the dehumidifier?

If not draining away, is there a 6mm-diameter hole in the lowest part of the duct for water drainage?

Ensure only trained/authorised electricians perform the work

Switch off the power supply at the mains switch before opening the electrical box

Pre-startup Electrical Installation Check

Check that all electrical connections are made correctly

Switch Operation for Units with Two Switch Buttons

Push the toggle switch S1 (red) to position 'I'

Set the toggle switch S2 (black)
