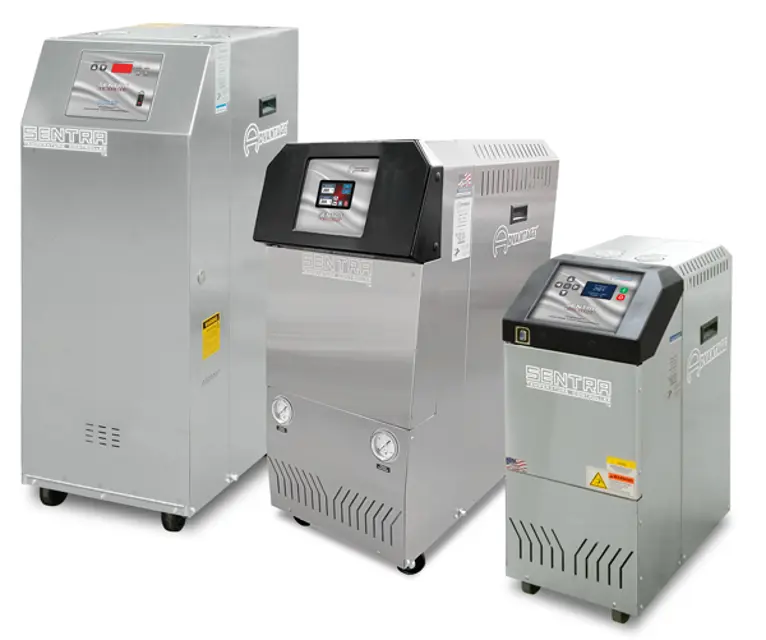

Advantage Temperature Controller SRV-1080

Shake out the water from the connection

Did the yellow Alert icon disappear?

Stop process operations as described in section 3.4 of the manual

Ensure all process pressure is relieved and pressure gauges read '0' pressure

Drain the unit by removing the pump casing drain plug

Disengage process operations and relieve all system pressure

Verify the Power light on the display is 'off'

Remove the lift-off access panel and set aside

Remove the necessary panels to gain access to the pump motor

Drain machine by removing the pump casing drain plug

Disengage process operations according to the procedure outlined in section 3.4.

Ensure coolant pressure gauge reads '0'.

Disengage main power supply following all lockout/tagout procedures.

Remove or open any access cover panel and set aside to gain access to the make-up solenoid valve.

Disassembling the Solenoid Valve

Remove the 4 retaining screws to disassemble the solenoid valve.

Unbox the unit before accepting delivery

Document any evident damage on the delivery receipt

Upload photographs of any suspected damage

Disengage operations and ensure all system pressure is relieved

Verify the unit’s pressure gauges read '0'

Verify the Power light on the display is 'off'

Remove the lift-off access panel and set aside

Drain machine by removing the pump casing drain plug
